Battery For Remote Control Key, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

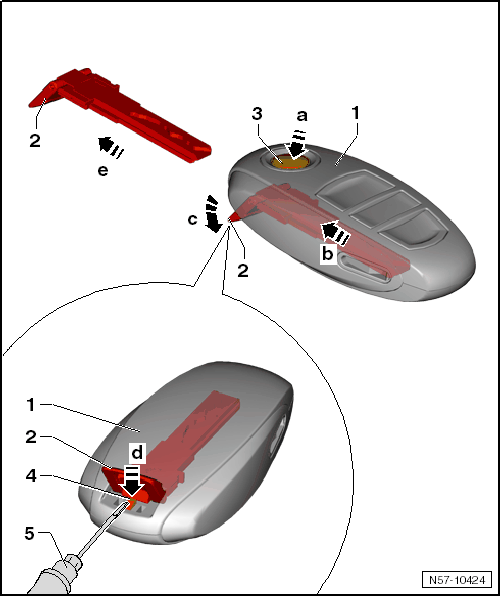

Fig 1: Identifying Remote Control Key -1-, Button -Arrow A-, Emergency Key -2-, Logo -3-, Release -4- And Screwdriver -5-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the button with the brand emblem -3- on the remote control key -1- in direction of -arrow a-.

The emergency key -2- is released and jumps slightly out of the remote control key in direction of -arrow b-. The key ring on the emergency key -2- folds down in direction of -arrow c-.

-- Push the release -4- and the button with the logo -3- with a screwdriver -5- at the same time in direction of -arrow a and arrow d-.

-- Pull the emergency key -2- out of the remote control key in direction of -arrow e-.

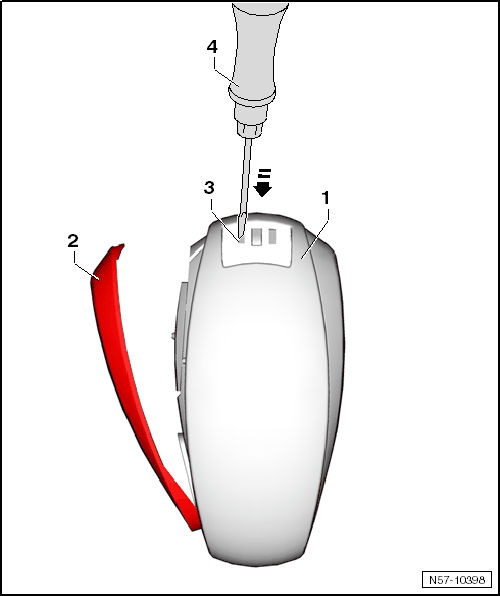

Fig 2: Identifying Back Side -1- Of Remote Control Key, Cover -2-, Left Recess -3- And Narrow Screwdriver -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the remote control key over to the back side -1-.

-- Insert a narrow screwdriver -4- into the left recess -3-.

-- Open the locking mechanism.

-- Remove the cover -2- from the remote control key.

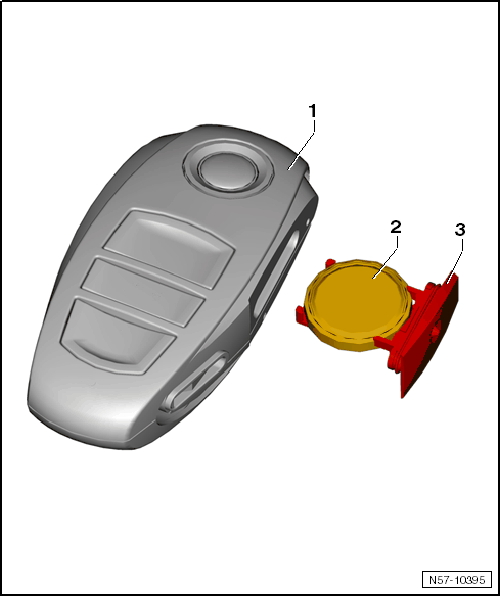

Fig 3: Identifying Radio Remote Container And New Battery

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the remote control key back over to the front side -1-.

-- Remove the battery compartment -3- from the remote control key.

-- Remove the battery -2- from the battery compartment -3-.
