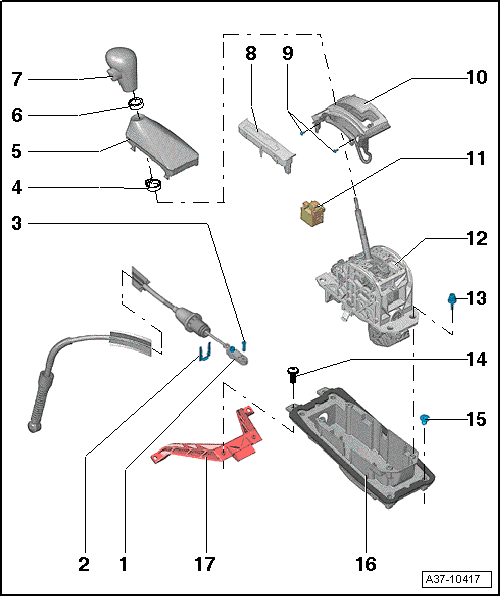

Overview - Selector Mechanism
WARNING:
There is a risk of injury and accident from accidentally engaging a gear when the engine is running.
- Before performing work with the engine running, place the selector lever in the "P" position and set the parking brake.
- Selector Lever Cable
- Do not bend.
- Refer to SELECTOR LEVER CABLE .
- Removing and installing. Refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING .
- Adjusting. Refer to SELECTOR LEVER CABLE, ADJUSTING .
- Locking Plate
- Selector Lever Cable Bolts
- Clamp
- For securing the selector lever handle to the selector lever.
- Selector Lever Boot
- Removing and installing. Refer to SELECTOR LEVER BOOT, REMOVING FROM SELECTOR LEVER HANDLE .
- Trim Ring
- Removing and installing. Refer to SELECTOR LEVER BOOT, REMOVING FROM SELECTOR LEVER HANDLE .
- Selector Lever Handle
- Refer to SELECTOR LEVER HANDLE, SELECTOR LEVER BOOT AND Selector Lever Transmission Range Position Display Unit - Y26- .
- Removing and installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
- Selector Lever Transmission Range Position Display Unit -Y26-
- Removing and installing. Refer to Selector Lever Transmission Range Position Display Unit - Y26-, REMOVING AND INSTALLING .
- Bolt
- 1 Nm
- Quantity: 4
- Selector Lever Sensor System Control Module -J587- with Tiptronic Switch -F189-
- Removing and installing. Refer to Selector Lever Sensor System Control Module -J587- WITH Tiptronic Switch -F189-, REMOVING AND INSTALLING .
- Shift Lock Solenoid -N110-
- Refer to SELECTOR MECHANISM, PERFORMING EMERGENCY RELEASE .
- Removing and installing. Refer to Shift Lock Solenoid - N110-, REMOVING AND INSTALLING .
- Selector Mechanism Function Unit
- Removing and installing. Refer to SHIFT MECHANISM FUNCTION UNIT, REMOVING AND INSTALLING .
- Checking. Refer to SELECTOR MECHANISM, CHECKING .
- Disassembly and assembly. Refer to SHIFT MECHANISM FUNCTION UNIT, DISASSEMBLING AND ASSEMBLING .
- With the Transmission Park Selector Switch -F305-. Refer to Transmission Park Selector Switch - F305-, REMOVING AND INSTALLING .
- Threaded Pin
- 6.5 Nm
- Quantity: 4
- For the selector mechanism function unit to the lower section.
- Bolt
- 6.4 Nm
- Quantity: 2
- For the centering bracket to the lower section of the selector mechanism function unit.
- Bolt
- 10 Nm
- Quantity: 4
- For the lower section of the selector mechanism function unit to the body.
- Selector Mechanism Function Unit Lower Section
- Removing and installing. Refer to SELECTOR MECHANISM FUNCTION UNIT LOWER SECTION, REMOVING AND INSTALLING .
- Centering Bracket
- May not be installed again if it is damaged or removed; necessary for factory production only.
