Overview - Selector Lever Cable

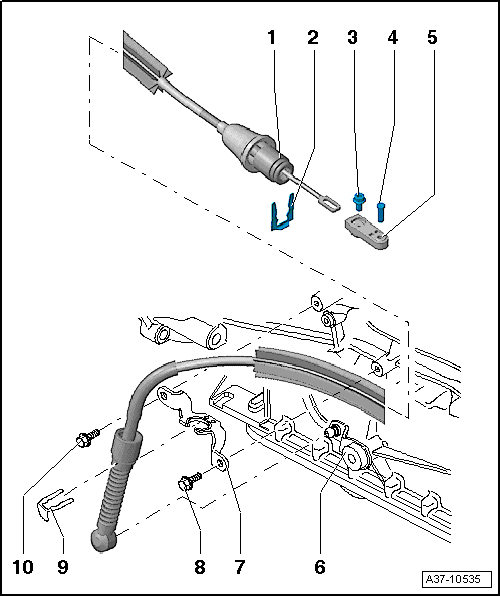

Fig 1: Identifying Selector Lever Cable Overview

Courtesy of AUDI OF AMERICA, LLC

1. Selector Lever Cable
   • Do not bend.
   • Removing and installing. Refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING .
   • The selector lever cable must be replaced if the rubber grommet is damaged.
   • Ball socket and ball head must be free of oil and grease.
   • Make sure the rubber grommet for the selector lever cable is installed correctly inside the selector mechanism function unit lower section and seals correctly.
   • Adjusting. Refer to SELECTOR LEVER CABLE, ADJUSTING .
2. Clip
   • Replace
   • For the selector lever cable on the selector mechanism function unit.
3. Bolt
   • 13 Nm
   • For adjusting the selector lever cable.
4. Selector Lever Cable Bolts
   • The plastic retaining spring on adjustment slide must lock the pins so that they cannot fall out.
5. Adjustment Slide
6. Selector Lever
   • Ball socket and ball head must be free of oil and grease.
   • Removing and installing. Refer to SELECTOR LEVER, REMOVING AND INSTALLING .
7. Cable Mounting Bracket
   • For selector lever cable.
8. Bolt

   Size depends on the version:

   • M6: 9 Nm
   • M8: 22 Nm
   • For attaching the cable bracket to the transmission.
9. Clip
   • Replace
   • For attaching the selector lever cable to the cable bracket.
10. Bolt

    Size depends on the version

    • M6: 9 Nm
    • M8: 22 Nm
    • For attaching the cable bracket to the transmission.

Fig 2: Identifying Selector Lever Cable Heat Shield/Ball Head

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -arrows- to 9 Nm.
