Code Control Module (scan tool function 07)

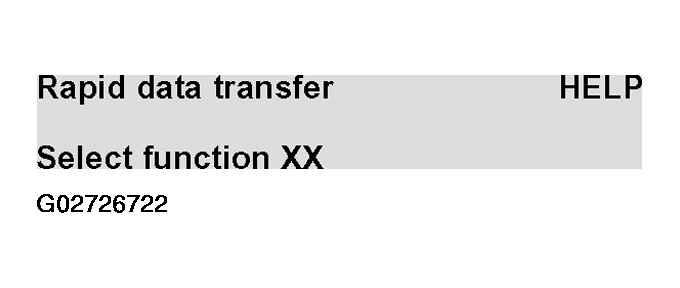

Connect VAG1551 scan tool, insert "Transmission Electronics" address word 02, and advance through program sequence until "Select function XX" is displayed. See ON BOARD DIAGNOSTIC (OBD), CHECKING .

Indicated on display

Fig 1: VAG 1551 Scan Tool Display - Code Control Module (1 Of 7)

Courtesy of AUDI OF AMERICA, INC.

NOTE: The Transmission Control Module (TCM) can be successfully coded only with:

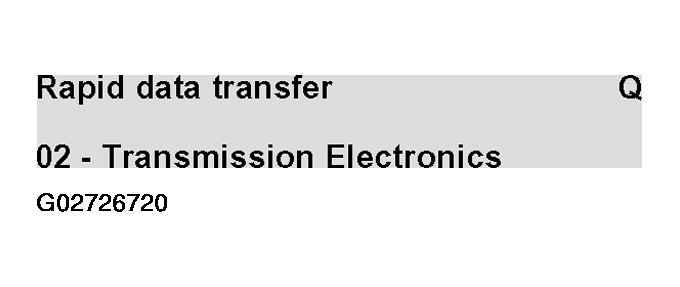

Indicated on display

Fig 2: VAG 1551 Scan Tool Display - Code Control Module (2 Of 7)

Courtesy of AUDI OF AMERICA, INC.

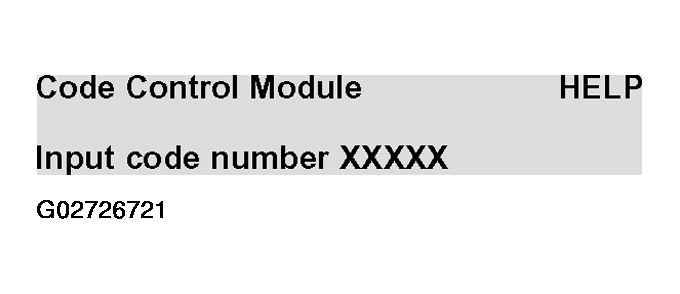

Indicated on display

Fig 3: VAG 1551 Scan Tool Display - Code Control Module (3 Of 7)

Courtesy of AUDI OF AMERICA, INC.

Input code number according to CONTROL MODULE CODE NUMBERS table.

CONTROL MODULE CODE NUMBERS

Code

Engine

Country

DSP ⁽²⁾

00000

invalid coding

00001

All valid engine types

All others⁽¹⁾

00002

USA

⁽¹⁾	"All others" (all countries except USA/Canada unless otherwise specified)

⁽²⁾	Dynamic Shift Program (DSP)

Press -Q- button to confirm input.
NOTE:
- Other codes are not permitted.
- After coding, DTC memory is automatically erased.
Press --> button.

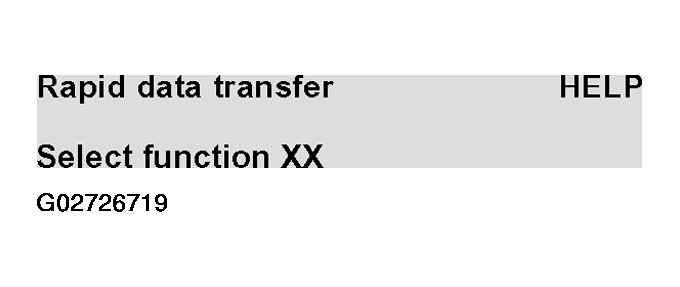

Indicated on display

Press buttons -0- and -1- to select "Check Control Module Versions" function 01, and press -Q- button to confirm.

Fig 4: VAG 1551 Scan Tool Display - Code Control Module (4 Of 7)
Courtesy of AUDI OF AMERICA, INC.

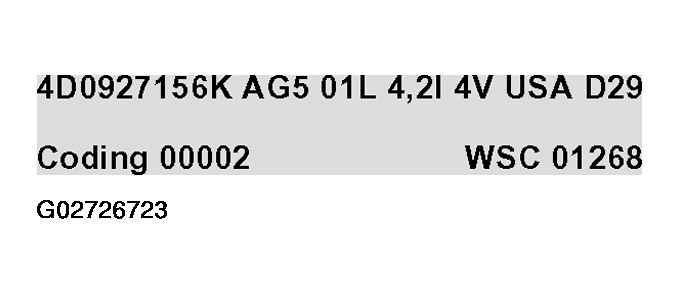

Indicated on display (example)

Fig 5: VAG 1551 Scan Tool Display - Code Control Module (5 Of 7)

Courtesy of AUDI OF AMERICA, INC.

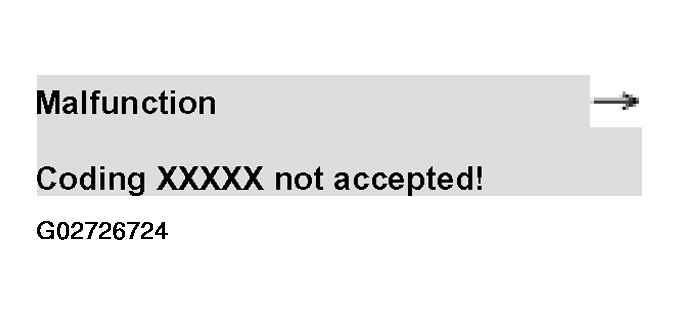

If indicated on display:

Fig 6: VAG 1551 Scan Tool Display - Code Control Module (6 Of 7)

Courtesy of AUDI OF AMERICA, INC.

NOTE:

The code that was entered is invalid, or is not recognized by the TCM.
If an invalid code has been entered, the TCM will retain the old coding.
Only older VAG1551 program cards will display the TCM identification with the old coding after an invalid code has been entered.

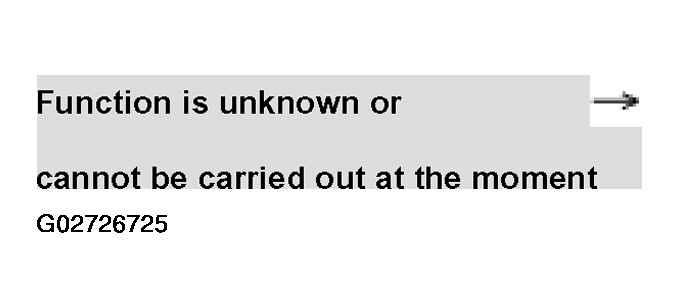

If indicated on display:

Fig 7: VAG 1551 Scan Tool Display - Code Control Module (7 Of 7)

Courtesy of AUDI OF AMERICA, INC.

An attempt has been made to input coding under conditions that do not permit it (for example, transmission drive mode selected).
