Automatic Transaxle - Testing & Troubleshooting (Except Hybrid)
>>
Service Procedure
>>
Secondary Shaft Disassembly, Reassembly and Inspection
>>
Exploded View
Exploded View
Secondary Shaft

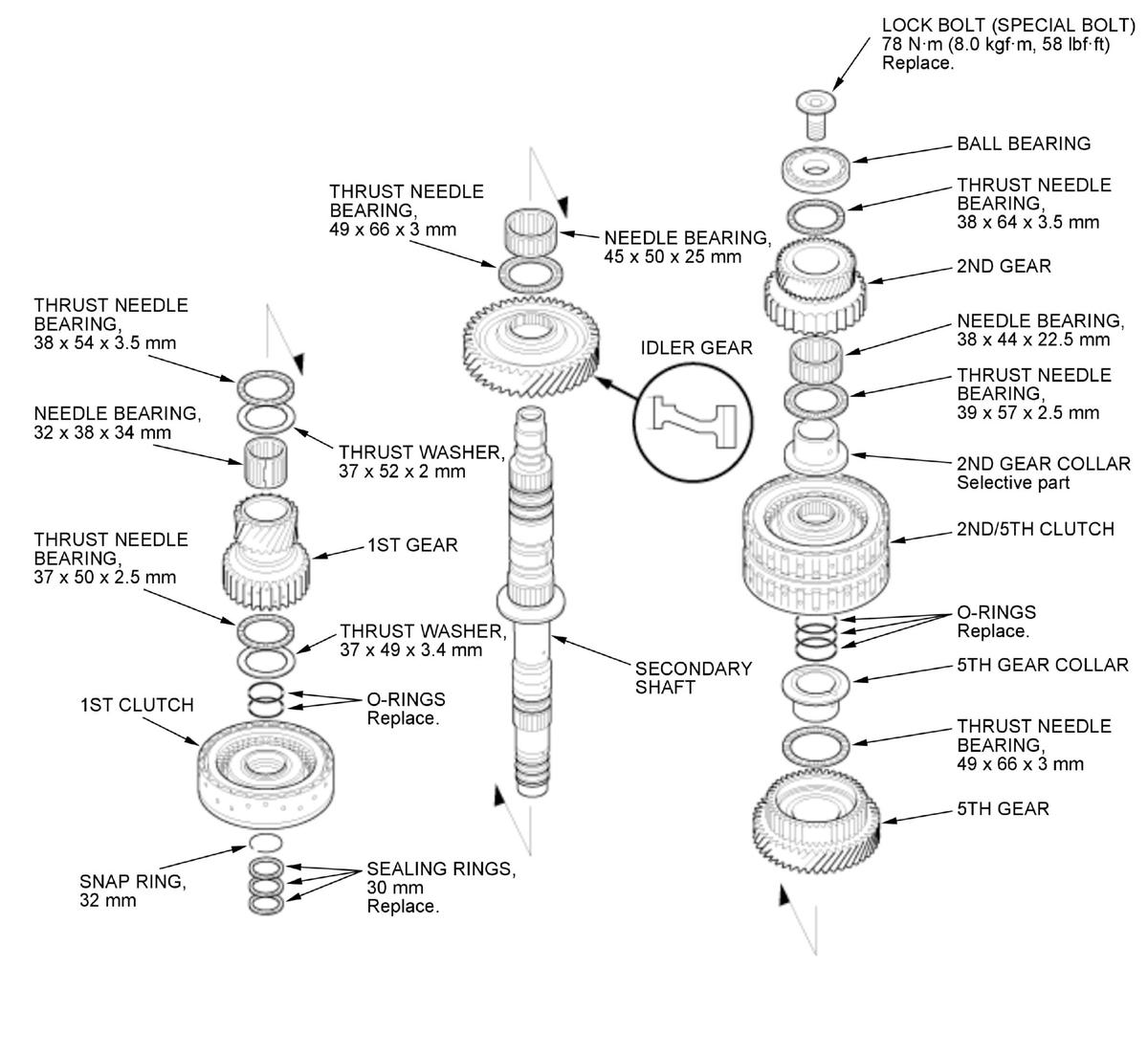

Fig 1: Secondary Shaft With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
