Exploded View

  1. Mainshaft

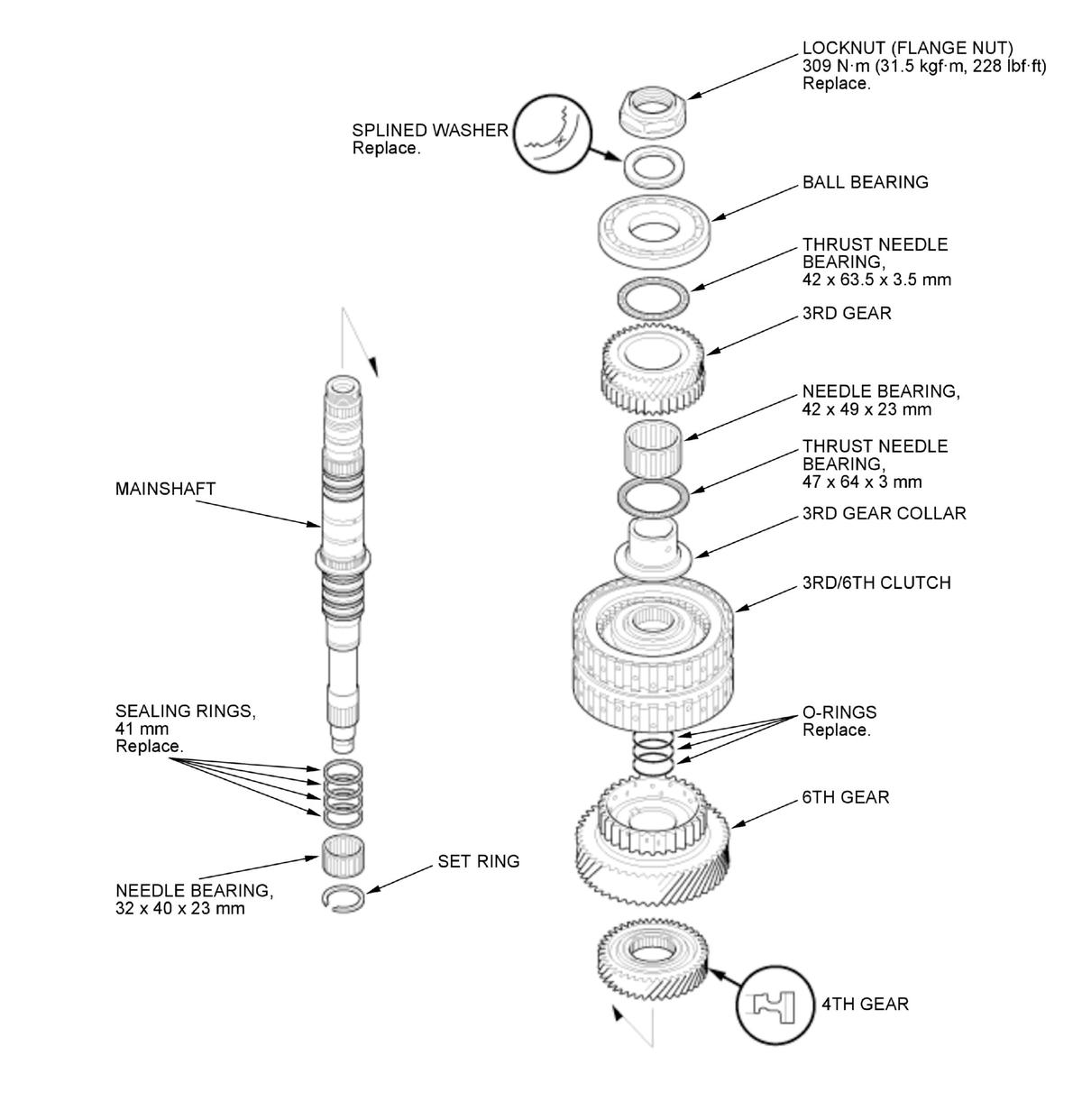

    Fig 1: Mainshaft Locknut With Torque Specifications
    GHH342226Courtesy of HONDA, U.S.A., INC.
