Line Pressure Switch: Installation

  1. Line Pressure Switch - Install

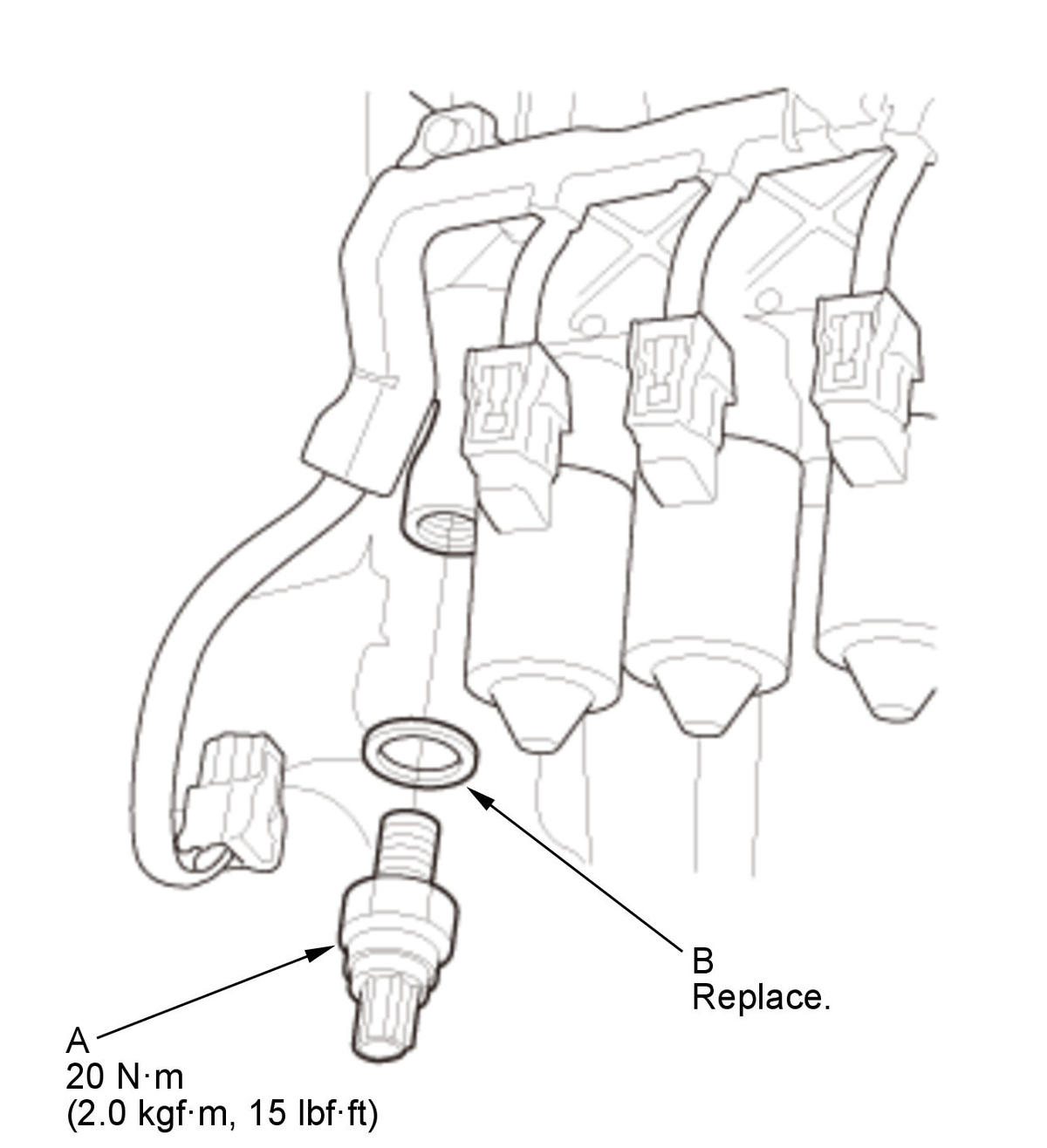

    Fig 1: Line Pressure Switch With Torque Specifications
    GHH341672Courtesy of HONDA, U.S.A., INC.
    1. Install the line pressure switch (A) with a new sealing washer (B).

    NOTE:  Tighten the switch by gripping the metal part, not the plastic part.
    GHH341673Courtesy of HONDA, U.S.A., INC.

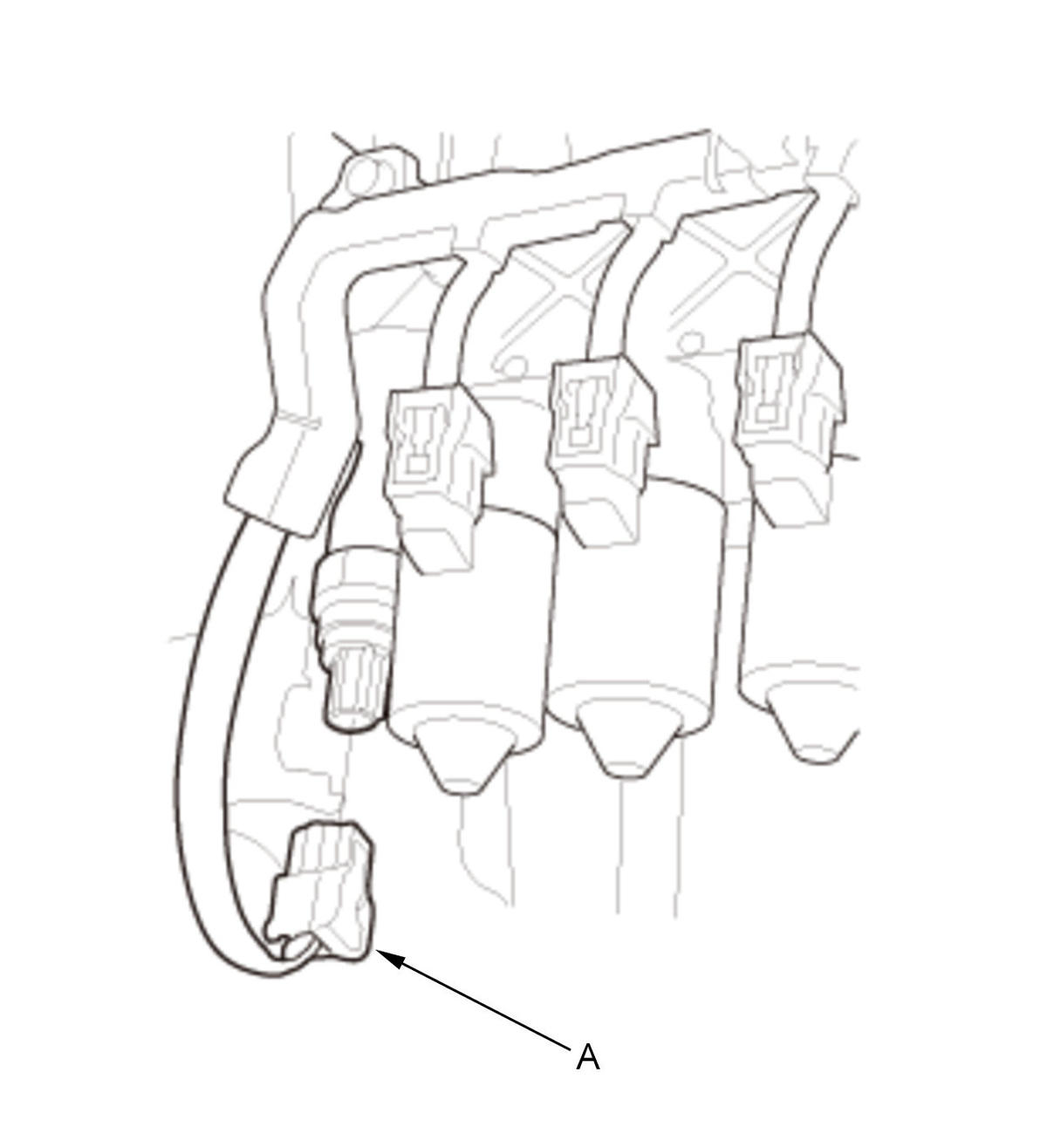

    		 2. Connect the line pressure switch connector (A) securely.

    NOTE:  Check the connector for corrosion, dirt, or oil, and clean or repair if necessary.
  2. Battery Base - Install

    Install the battery base .

  3. Battery - Install

    Do the battery installation procedure .

  4. Air Cleaner - Install

    Install the air cleaner .

  5. ATF Level - Check

    Check the ATF level .
