Vertical Acceleration Sensor Replacement: Rear

  1. Press the engine start/stop button to select the OFF mode.
  2. Remove the appropriate side of the rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
  3. Disconnect the vertical acceleration 3P sensor connector (A).
    NOTE: The illustration shows the left side of the vehicle, the right side is similar.

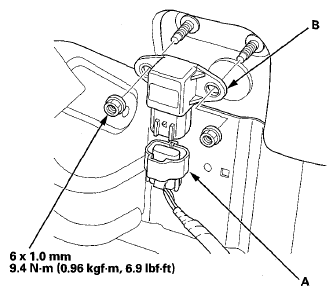

    Fig 1: Vertical Acceleration 3P Sensor Connector With Torque Specifications
    G08073501Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the sensor mounting nuts, and pull out the vertical acceleration sensor (B).
  5. Install the vertical acceleration sensor in the reverse order of removal.
  6. Test-drive the vehicle, and check that the active damper system indicator does not come on (see ACTIVE DAMPER SYSTEM DAMPER UNITS  ).
