Suspension Stroke Sensor Replacement: Front

  1. Press the engine start/stop button to select the OFF mode.
  2. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  3. Remove the front wheel.
  4. Disconnect the suspension stroke sensor 3P connector (A).

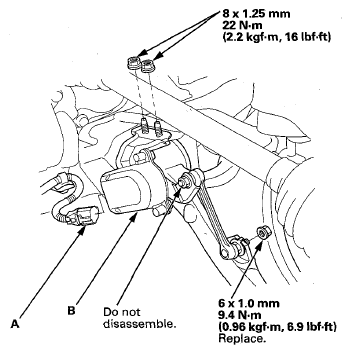

    Fig 1: Suspension Stroke Sensor 3P Connector And Nuts With Torque Specifications
    G08073508Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the nuts, then remove the suspension stroke sensor (B).
    NOTE: Use the new 6 mm nut during reassembly.
  6. Install the suspension stroke sensor in the reverse order of removal.
