System Indicator

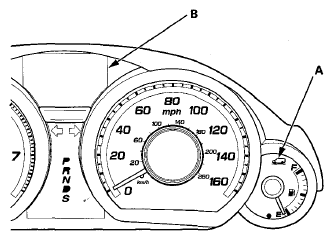

This system has an active damper system indicator (A).
When the active damper system is working correctly, the active damper system indicator comes on after pressing the engine start/stop button to select the ON mode, and it goes off when the engine is started.
If the system detects a problem, the indicator comes on, then the indicator will stay on until the engine start/stop button is pressed to select the OFF mode, or until the problem goes away (system returns to normal), the indicator will then go off.
NOTE:
The damper system mode is controlled by the integrated dynamics system switch and is indicated on the multi-information display (MID) (B).
