DTC 2-5: Right-Front/Right-Rear Suspension Stroke Sensor Range/Performance Problem; DTC 2-6: Left-Front/Left-Rear Suspension Stroke Sensor Range/Performance Problem
- Press the engine start/stop button to select the ON mode.
- Clear the DTC with the HDS.
- Test-drive the vehicle.
- Check for DTCs with the HDS.
Is DTC 2-5 or 2-6 indicated?
YES -Go to step 5.
NO -Intermittent failure, the system is OK at this time. Refer to INTERMITTENT FAILURES TROUBLESHOOTING .
- Press the engine start/stop button to select the OFF mode.
- Remove the appropriate suspension stroke sensor (see SUSPENSION STROKE SENSOR REPLACEMENT
). Do not disconnect the sensor connector.
DTC Suspension Stroke Sensor 2-5 Right-front and right-rear 2-6 Left-front and left-rear - Start the engine, and wait 5 seconds.

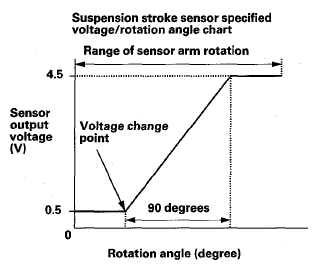

- Check the SUS STROKE_S VOLTAGE (RF), (LF), (RR), or (LR) in the ACTIVE DAMPER SYSTEM DATA LIST with the HDS while moving the suspension stroke sensor arm through a complete stroke. Compare the voltage/rotation angle between the chart and the measurements.NOTE: The voltage should increase (decrease) within 90 degrees of the sensor arm rotation from the first voltage change point.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is the voltage as specified?
YES -Replace the active damper control unit (see SUSPENSION STROKE SENSOR REPLACEMENT ).
NO -Replace the appropriate suspension stroke sensor (see SUSPENSION STROKE SENSOR REPLACEMENT ).
