Circuit Diagram

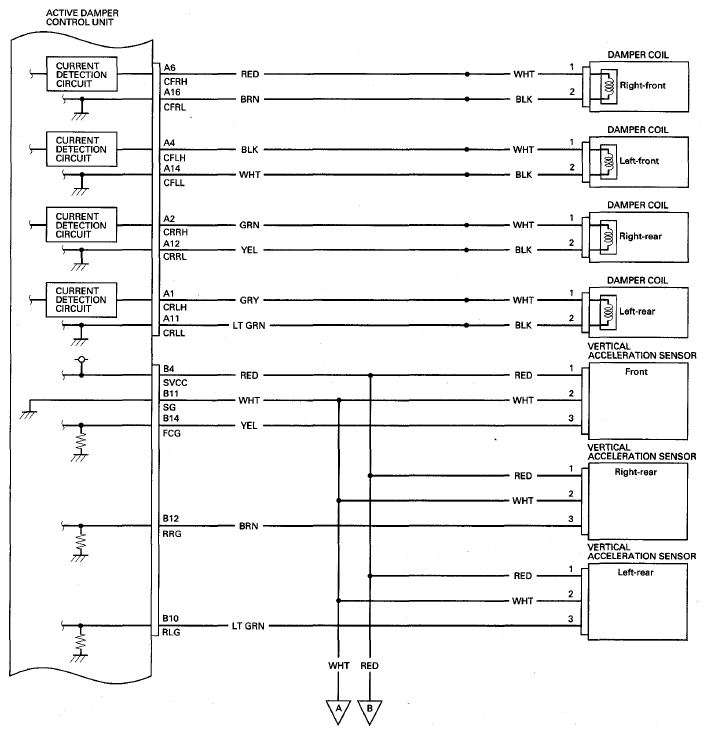

Fig 1: Active Damper Control Unit Circuit Diagram (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

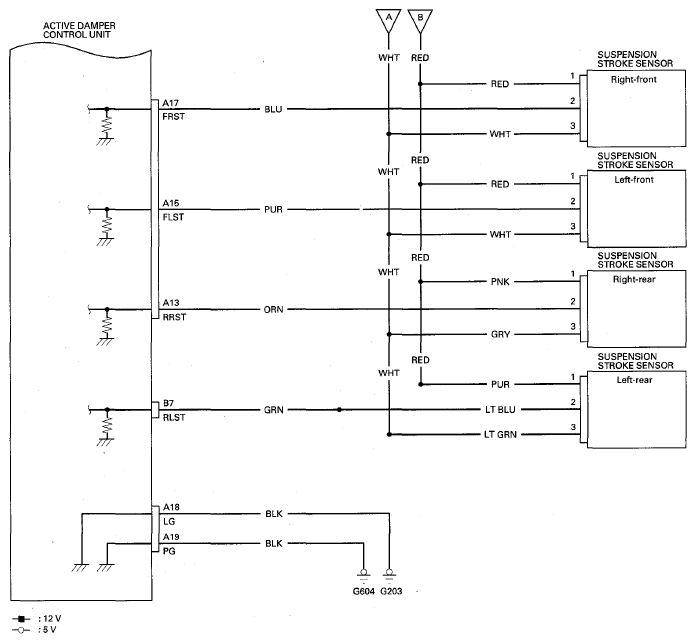

Fig 2: Active Damper Control Unit Circuit Diagram (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

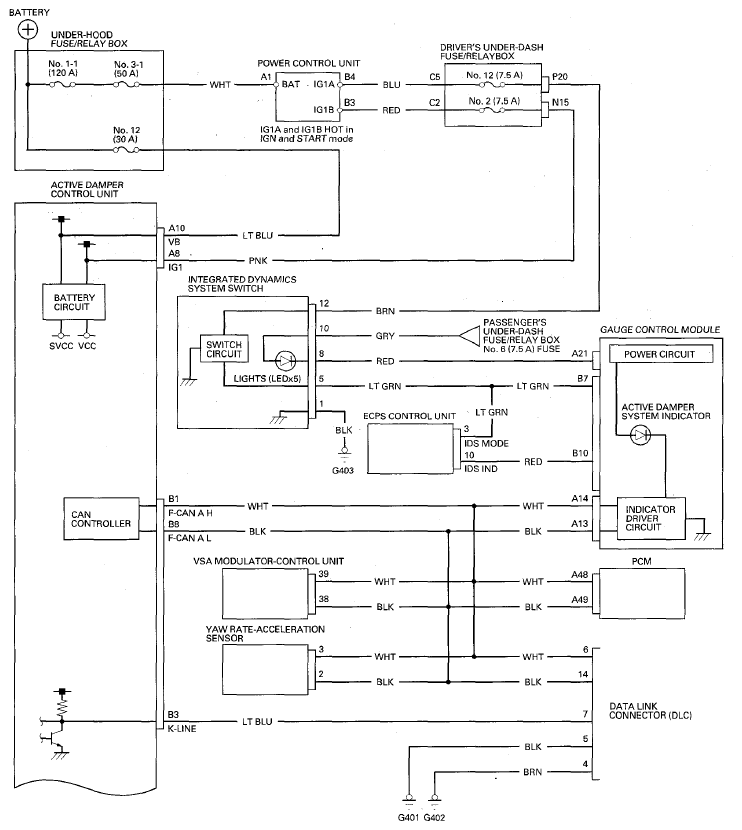

Fig 3: Active Damper Control Unit Circuit Diagram (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

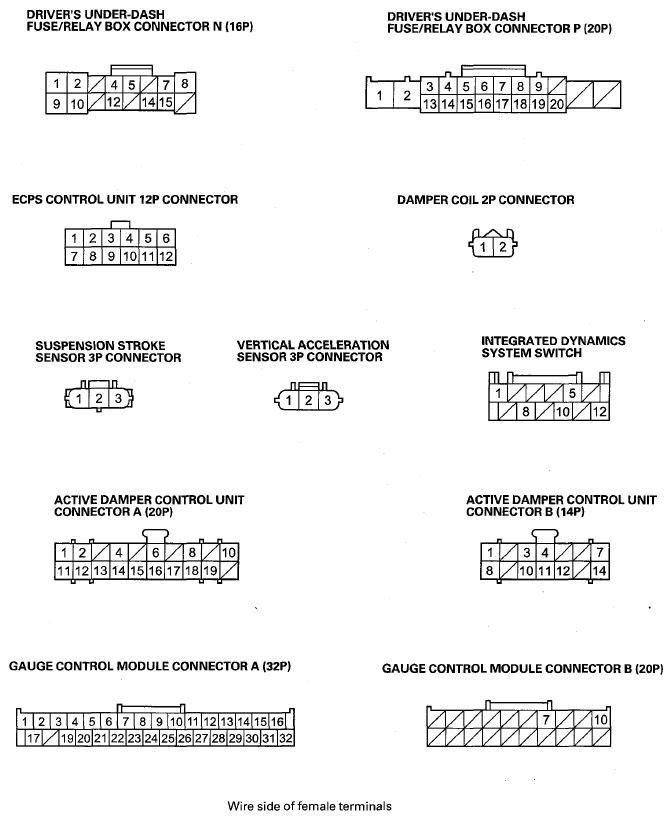

Fig 4: Identifying Active Damper Control Unit Connectors Terminals (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

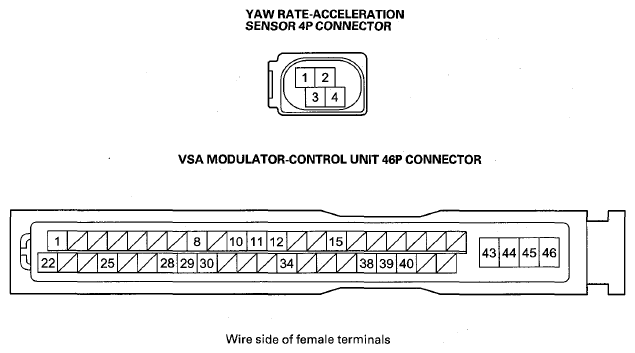

Fig 5: Identifying Active Damper Control Unit Connectors Terminals (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

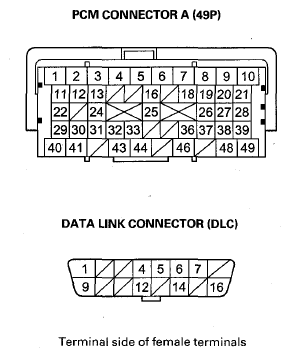

Fig 6: Identifying Active Damper Control Unit Connectors Terminals (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
