Crankshaft and Piston Installation

Special Tools Required

  1. Check the connecting rod bearing clearance with plastigage (see CONNECTING ROD BEARING REPLACEMENT )
  2. Check the main bearing clearance with plastigage (see CRANKSHAFT MAIN BEARING REPLACEMENT )
  3. Install the bearing halves in the engine block and the connecting rods
  4. Apply new engine oil to the inside of the main bearings and the rod bearings
  5. Install the CKP pulse plate to the crankshaft (see CKP PULSE PLATE REPLACEMENT )
  6. Lower the crankshaft (A) into the engine block, being careful not to damage the journals and the CKP pulse plate
    Fig 1: Identifying Crankshaft
    G05987065Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Apply new engine oil to the side with the thrust washer groove Install the thrust washers (A) in the No 3 journal
    Fig 2: Identifying Thrust Washers
    G05987066Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the bearings (A) and the bearing caps (B) with the arrow (C) facing the timing belt side of the engine block

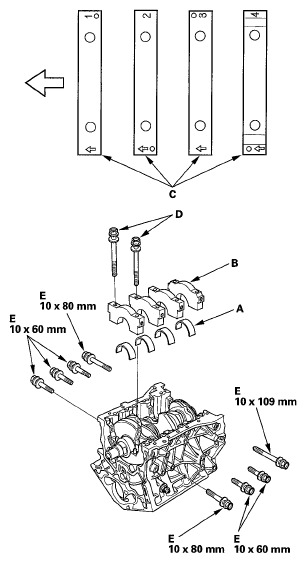

    Fig 3: Identifying Bearing Caps Installation Position
    G05987067Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Apply new engine oil to the bolt threads and flanges, then loosely install the bearing cap bolts (D) and the bearing cap side bolts (E)
  10. Set the crankshaft to bottom dead center (BDC) for the cylinder you are installing the piston in
  11. Apply new engine oil to the piston, the inside of the ring compressor, and the cylinder bore
  12. Attach the ring compressor to the piston/connecting rod assembly, and check that the bearing is securely in place
  13. Position the piston/connecting rod assembly with the arrow (A) facing the timing belt side of the engine block
    Fig 4: Positioning Piston/Connecting Rod Assembly
    G05987068Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Position the piston/connecting rod assembly in the cylinder, and tap it in using the wooden handle of a hammer (A) Maintain downward force on the ring compressor (B) to prevent the rings from expanding before entering the cylinder bore
    Fig 5: Tapping Piston/Connecting Rod Assembly In Cylinder Bore
    G05987069Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Stop after the ring compressor pops free, and check the connecting rod-to-rod journal alignment before pushing the piston into place
  16. Measure the diameter of each connecting rod bolt at point A and point B
    Fig 6: Measuring Diameter Of Connecting Rod Bolt Point A And B
    G05987070Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Calculate the difference in diameter between point A and point B

    Point A-Point B = Difference in Diameter

    Difference in Diameter

    Specification 0-0.1 mm (0-0.004 in.)

  18. If the difference in diameter is out of tolerance, replace the connecting rod bolt
  19. Install the bearing (B), then line up the mark (A) on the connecting rod and the rod cap (C)
    Fig 7: Identifying Connecting Rod Bearing And Cap
    G05987071Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Apply new engine oil to the bolt threads and flanges Tighten the bolts (D) to 20 N m (2.0 kgf m, 14 lbf ft)
  21. Mark the connecting rod (A) and the bolt head (B) as shown
    Fig 8: Identifying Connecting Rod Bolts Tightening Angle
    G05987072Courtesy of AMERICAN HONDA MOTOR CO., INC.
  22. Tighten the bolt until the mark on the bolt head lines up with the mark on the connecting rod (turn the bolt 90 °)
    NOTE: Remove the connecting rod bolt if you tightened it beyond the specified angle, and go back to step  16 of the procedure Do not loosen it back to the specified angle. Repeat step  10 to 22 for the remaining cylinders
  23. Tighten the bearing cap bolts, and then the bearing cap side bolts to the specified torque in the sequence as shown Repeat the torque sequence again to ensure the bolts are properly torqued

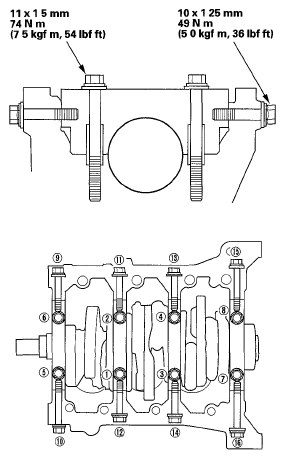

    Fig 9: Tightening Bearing Cap Bolts With Specification Torque
    G05987073Courtesy of AMERICAN HONDA MOTOR CO., INC.
  24. Remove all of the old liquid gasket from the engine block end cover mating surfaces, the bolts, and the bolt holes
  25. Clean and dry the engine block end cover mating surfaces
  26. Apply a light coat of new engine oil to the lip of the crankshaft oil seal
  27. Using the driver handle, 15 x 135 L and the oil seal driver attachment, 106 mm, drive in the new crankshaft oil seal until the oil seal driver attachment bottoms on the engine block end cover
    Fig 10: Tapping Crankshaft Oil Seal
    G05987074Courtesy of AMERICAN HONDA MOTOR CO., INC.
  28. Apply liquid gasket, P/N 08717-0004, 08718-0003, or 08718-0009, evenly to the engine block mating surface of the engine block end cover and to the inside edge of the threaded bolt holes Install the component within 5 minutes of applying the liquid gasket
    NOTE:
    • Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line
    • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket
    Fig 11: Identifying Liquid Gasket Applying Area
    G05987075Courtesy of AMERICAN HONDA MOTOR CO., INC.
  29. Install the dowel pins (A), a new O-ring (B), and the engine block end cover (C) on the engine block
    NOTE:
    • Wait at least 30 minutes before filling the engine with oil
    • Do not run the engine for at least 3 hours after installing the engine block end cover
      • Fig 12: Dowel Pins, O-Ring And Engine Block End Cover With Torque Specification
      G05987076Courtesy of AMERICAN HONDA MOTOR CO., INC.
  30. Clean the excess grease off the crankshaft, and check the seal for distortion
  31. Install a new crankshaft oil seal in the oil pump (see step 3 on INSTALLATION )
  32. Remove all of the old liquid gasket from the oil pump mating surfaces, the bolts, and the bolt holes
  33. Clean and dry the oil pump mating surfaces
  34. Apply liquid gasket, P/N 08717-0004, 08718-0003, or 08718-0009, evenly to the engine block mating surface of the oil pump and to the inside edge of the threaded bolt holes Install the component within 5 minutes of applying the liquid gasket
    NOTE:
    • Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line
    • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket
      • Fig 13: Identifying Liquid Gasket Applying Area
      G05987077Courtesy of AMERICAN HONDA MOTOR CO., INC.
  35. Apply a light coat of new engine oil to the lip of the crankshaft oil seal, and apply new engine oil to the new O-ring (A)

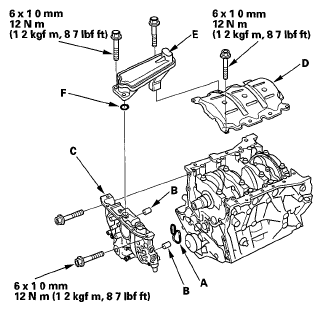

    Fig 14: Baffle Plate, Oil Pump And Dowel Pins With Torque Specifications
    G05987078Courtesy of AMERICAN HONDA MOTOR CO., INC.
  36. Install the dowel pins (B), then align the inner rotor with the crankshaft, and install the oil pump (C)
  37. Clean the excess grease off the crankshaft, and check the seal for distortion
  38. Install the baffle plate (D), then install the oil strainer (E) with a new O-ring (F)
    NOTE:
    • Wait at least 30 minutes before filling the engine with oil
    • Do not run the engine for at least 3 hours after installing the oil pump
  39. Install the rocker arm oil control solenoid/oil filter assembly (A), with a new rocker arm oil control solenoid filter (B)
    Fig 15: Rocker Arm Oil Control Solenoid And Oil Filter Assembly With Torque Specification
    G05987079Courtesy of AMERICAN HONDA MOTOR CO., INC.
  40. Install the oil pan (see OIL PAN INSTALLATION )
  41. Install the timing belt drive pulley to the crankshaft
  42. Install the cylinder heads
  43. M/T model: Install the flywheel (see ENGINE SIDE step 18. )
  44. A/T model: Install drive plate (see DRIVE PLATE REMOVAL AND INSTALLATION )
  45. Install the transmission:
  46. Install the engine/transmission (see ENGINE INSTALLATION )
NOTE: When any crankshaft or connecting rod bearing is replaced, run the engine at idle until it reaches normal operating temperature, then continue to run it for about 15 minutes
