Shift Lever Boot and A/T Gear Position Indicator Panel Replacement

Remove the center console panel (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Remove the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT ).
Remove the A/T gear position indicator panel light bulb socket from the indicator panel base, and remove the A/T gear position indicator panel/shift lever boot assembly.

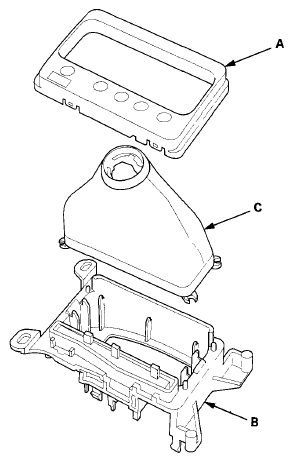

Disassemble the indicator panel (A), the panel base (B), and the boot (C).

Fig 1: Identifying Indicator Panel, Panel Base And Boot
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the shift lever boot or the A/T gear position indicator panel.
Install the shift lever boot (A) on the A/T gear position indicator panel base (B) with aligning the corner slots (C) with the tabs (D) on the panel base.

Fig 2: Installing Shift Lever Boot On A/T Gear Position Indicator Panel Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the A/T gear position indicator panel on the indicator panel base.
Install the A/T gear position indicator panel/boot assembly on the shift lever bracket.
Install the A/T gear position indicator panel light bulb socket in the indicator panel base.
Install the shift lever knob (see SHIFT LEVER KNOB REPLACEMENT ).
Install the center console panel (see CENTER CONSOLE REMOVAL/INSTALLATION ).
