SRS Unit Replacement: Installation

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Install the new SRS unit (A) with TORX bolts (B), then connect the connectors (C) to the SRS unit; push them into position until they click.
NOTE: Be sure the SRS unit is sitting squarely against it's bracket before torquing the TORX bolts.

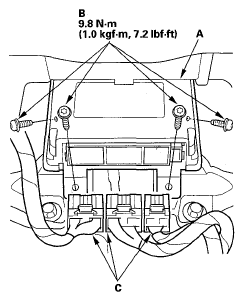

Fig 1: SRS Unit, TORX Bolts And Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reconnect both seat belt tensioner connectors (see step 6 on DISCONNECTING SYSTEM CONNECTORS ).
Reconnect the negative cable to the battery.
Calibrate the ODS unit (see ODS UNIT CALIBRATION ).
Do the ODS unit operation check (see ODS UNIT OPERATION CHECK ).
NOTE: This is necessary for registration of serial IDs.
Install all removed parts.
After installing the SRS unit, confirm proper system operation: Turn the ignition switch ON (II); the SRS indicator should come on for about 6 seconds and then go off.
