Transmission Removal

Special Tools Required

• RDX engine support eyelet 07AAK-SNAA600
• Support bolt 07AAK-SNAA500
• RDX engine support mount pads 07AAK-STKA120
• Front subframe adapter VSB02C000016 *
• Engine support hanger, A and Reds AAR-T-12566 *

  These special tools are available through the Honda Tool and Equipment Program 1-888-424-6857.

1. Secure the hood in the wide open position with the support rod.
2. Do the battery removal procedure (see REMOVAL ).
3. Remove the charge air cooler cover.
4. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
5. Remove the battery base (see step 7 on ENGINE REMOVAL ).
6. Raise the vehicle on a lift, and make sure it is securely supported.
7. Remove the wheels.
8. Remove the splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
9. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).
   Fig 1: Drain Plug With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Reinstall the drain plug with a new sealing washer (B).
11. For '07 model: Disconnect the transmission range switch connector (A).
    Fig 2: Identifying Transmission Range Switch Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Remove the transmission ground cable terminal (B), and remove the harness clamp (C) from the bracket.

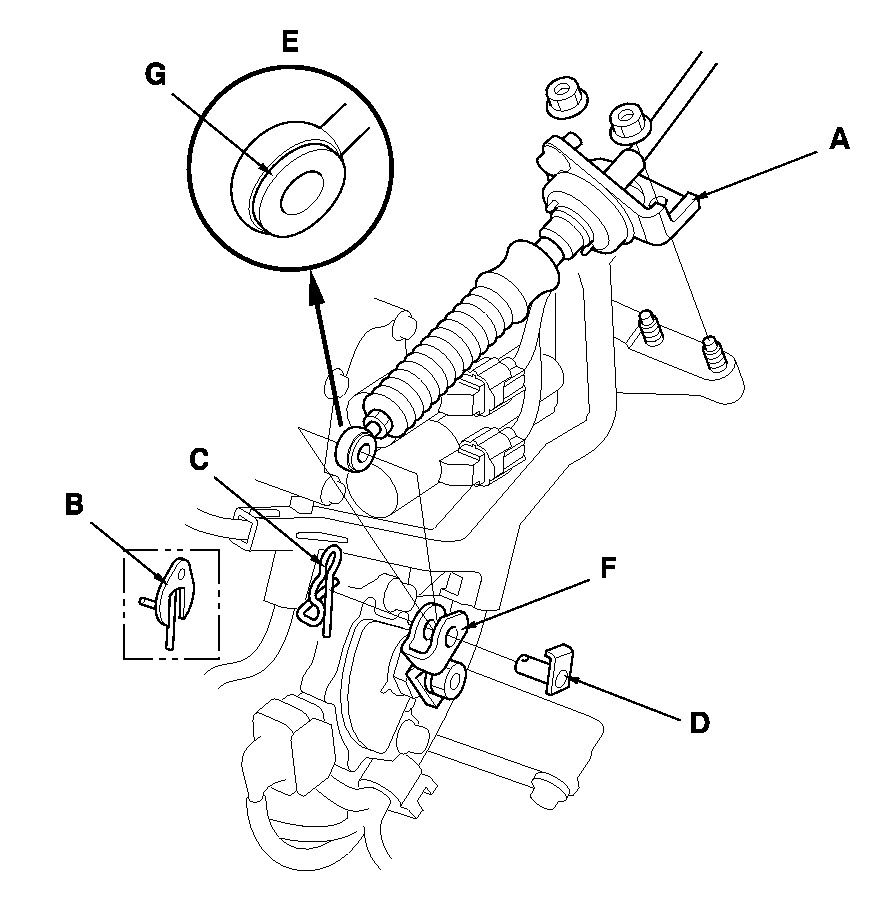

13. Remove the nuts securing the shift cable bracket (A).
    Fig 3: Removing Shift Cable Bracket Nuts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
14. Remove the spring clip/washer ('07 model) (B), the spring clip ('08-09 models) (C), and the control pin (D), then separate the shift cable end (E) from the control lever (F).
15. Check the bushing (F) in the shift cable end for proper fit and wear. If the bushing is loose or worn, replace the shift cable (see SHIFT CABLE REPLACEMENT ).
16. For '08-09 models: Disconnect the transmission range switch connector.
    Fig 4: Identifying Transmission Range Switch Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

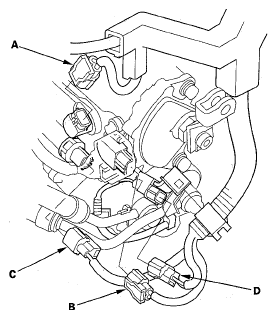

17. Disconnect the input shaft (mainshaft) speed sensor connector (A), the output shaft (countershaft) speed sensor connector (B), the 3rd clutch transmission fluid pressure switch connector (C), and the ATF temperature sensor connector (D).
    Fig 5: Identifying Input Shaft Speed Sensor, Output Shaft Speed Sensor And 3rd Clutch Transmission Fluid Pressure Switch Connectors

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
18. Disconnect the A/T clutch pressure control solenoid valve A connector (A), the solenoid valve B connector (B), solenoid valve C connector (C), the 4th clutch transmission fluid pressure switch connector (D), and the shift solenoid harness connector (E).
    Fig 6: Identifying A/T Clutch Pressure Control Solenoid Valve And Shift Solenoid Harness Connectors

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
19. Remove the bolt securing the harness cover (F).
20. Disconnect the ATF cooler hoses (A) from the ATF lines (B). Turn the end of the ATF cooler hoses up to prevent ATF from flowing out, then plug the hoses and lines.
    Fig 7: Identifying ATF Cooler Hoses And ATF Lines

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
21. Remove the breather hose (A) from the hose clip (B), remove the cooler by-pass hoses (C) from the clamps (D), and remove the bolt securing the clamp bracket (E).
    Fig 8: Identifying Breather Hose, Hose Clip, Cooler By-Pass Hoses And Clamp Bracket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
22. Remove the bolts securing the harness clamp/ junction box bracket from the transmission housing.
    Fig 9: Removing Harness Clamp/Junction Box Bracket Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
23. Remove the hose (A) from the clamp on the intake air duct, and remove the intake air duct (B).
    Fig 10: Identifying Intake Air Duct

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
24. Attach the engine support eyelet (07AAK-SNAA600) to the cylinder head with the support bolt (07AAK-SNAA500). Tighten the bolt by hand.
    Fig 11: Attaching Engine Support Eyelet To Cylinder Head

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
25. Remove the top corner clip (A) from the front grille on both sides. Place the engine support mount pads (07AAK-STKA120) over the hood edge cushions (B), and align the pins with the clip hole (O.
    Fig 12: Placing Engine Support Mount Pads Over Hood Edge Cushions

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

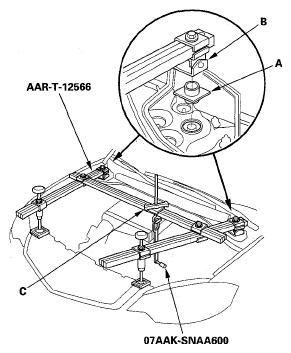

26. Remove both lids for the front damper flange nuts from the cowl cover. Use the adapter (A) between the cross arm foot (B) and body when positioning the engine support hanger.
    Fig 13: Positioning Engine Support Hanger

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
27. Carefully position the engine support hanger (AAR-T-12566) on the vehicle, and attach the hook to the slotted hole in the engine support eyelet (07AAK-SNAA600). Tighten the wing nut (C) by hand to lift and support the engine/transmission assembly.
    NOTE: Use care when working around the windshield.

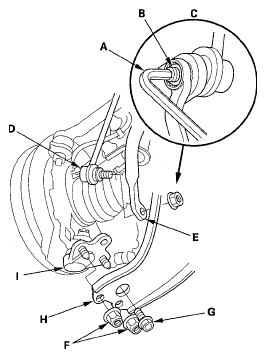

28. Insert a 6 mm Allen wrench (A) in the top of the ball joint pin (B), and remove the nuts (C), then separate the stabilizer link (D) from the stabilizer (E).
    Fig 14: Inserting Allen Wrench In Top Of Ball Joint Pin

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
29. Remove the nuts (F) and bolt (G) securing the lower arm (H) and ball joint (I), and separate the lower arms from the ball joints.
30. Remove the three-way catalytic converter.
    Fig 15: Removing Three-Way Catalytic Converter

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
31. Remove the bolt securing the transfer breather hose bracket (A), and disconnect the breather hose (B) from the breather pipe (C) on the transfer assembly. Cap the breather pipe to prevent fluid from leaking out.
    Fig 16: Identifying Breather Hose

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
32. Make a reference mark (A) across the propeller shaft (B) and the transfer companion flange (C).
    Fig 17: Identifying Reference Mark On Propeller Shaft And Transfer Companion Flange

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
33. Separate the propeller shaft from the transfer companion flange.
34. Remove the bolts securing the ATF cooler line at the front of the subframe.
    Fig 18: Removing ATF Cooler Line Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
35. Remove the torque converter cover (A), and remove the drive plate bolts (B) (8) while rotating the crankshaft pulley.
    Fig 19: Removing Torque Converter Cover

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
36. Remove the bolt securing the power steering fluid line clamp bracket at the right front of the subframe.
    Fig 20: Removing Power Steering Fluid Line Clamp Bracket Bolt

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
37. Remove the power steering fluid hose from the hose clamps.
    Fig 21: Identifying Power Steering Fluid Hose

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
38. Remove the steering gearbox bracket mounting bolts.
    Fig 22: Removing Steering Gearbox Bracket Mounting Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
39. Remove the steering gearbox bracket mounting bolts.
    Fig 23: Removing Steering Gearbox Bracket Mounting Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
40. Remove both steering gearbox stiffener mounting bolts.
    Fig 24: Removing Steering Gearbox Stiffener Mounting Bolt

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
41. Place a jack under the engine, raise it just enough to take it off of the mount, and remove the lower torque rod bolts.
    Fig 25: Removing Lower Torque Rod Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
42. Remove the jack.
43. Remove the propeller shaft protector.
    Fig 26: Removing Propeller Shaft Protector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
44. Make reference marks on the body across the marks (A) (B) on the edge of the subframe.
    Fig 27: Identifying Reference Marks On Body Across Marks On Edge Of Subframe

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
45. Attach the front subframe adapter (VSB02C000016) to the subframe by looping the strap over the front of the subframe, then secure the strap.
    Fig 28: Attaching Front Subframe Adapter To Subframe

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
46. Raise the jack and line up the slots in the arms with the bolt holes on the corner of the jack base, then tighten the bolts.
47. Remove the lower arm bracket mounting bolts (A).
    Fig 29: Removing Lower Arm Bracket Mounting Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
48. Remove the six bolts (B) (C) securing the front subframe (D), and lower the subframe.
49. Hang the steering gearbox from the body with a strap.
50. Disconnect the 2nd clutch transmission fluid pressure switch connector.
    Fig 30: Disconnecting 2nd Clutch Transmission Fluid Pressure Switch Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
51. Remove the driveshafts from the differential and intermediate shaft.
    Fig 31: Removing Driveshafts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
52. Remove the intermediate shaft heat shield (A).
    Fig 32: Removing Intermediate Shaft Heat Shield

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
53. Remove the intermediate shaft (B).
54. Coat all precision machined surfaces with clean engine oil, then put plastic bags over driveshaft ends and intermediate shaft ends.
55. Remove the upper transmission housing mounting bolts.
    Fig 33: Removing Upper Transmission Housing Mounting Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
56. Place a jack under the transmission, raise it just enough to take it off of the mount, and remove the transmission mount bracket bolt and nuts.
    Fig 34: Removing Transmission Mount Bracket Bolt And Nuts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
57. Remove the jack.
58. Remove the front transmission housing mounting bolts.
    Fig 35: Removing Front Transmission Housing Mounting Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
59. Remove the rear transmission housing mounting bolts.
    Fig 36: Removing Rear Transmission Housing Mounting Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
60. Lower the transmission by loosening the wing nut on the engine support hanger, and tilt the engine just enough for the transmission to clear the side frame.
61. Place a jack under the transmission.
62. Remove the lower transmission housing mounting bolts.
    Fig 37: Removing Lower Transmission Housing Mounting Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
63. Slide the transmission away from the engine to remove it from the vehicle.
64. Install the propeller shaft protector.
    Fig 38: Installing Propeller Shaft Protector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
65. Remove the torque converter and dowel pins.
    Fig 39: Removing Torque Converter And Dowel Pins

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
66. Inspect the drive plate, and replace it if it's damaged.
67. Remove the clamp bracket from the transmission.
    Fig 40: Removing Clamp Bracket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
68. Remove the transfer assembly from the transmission.
    Fig 41: Removing Transfer Assembly

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
