Air Cleaner Removal/Installation

  1. Remove the battery upper bracket to avoid damaging the air cleaner.
  2. Loosen the screw of the hose band (A).

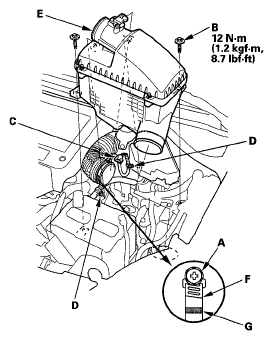

    Fig 1: Air Cleaner Replacement Components With Torque Specifications
    G05444787Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B).
  4. Remove the MAF/IAT sensor connector (C) and harness clamps (D).
  5. Remove the air cleaner (E).
  6. Install the parts in the reverse order of removal.
NOTE: Tighten the hose band screw (A) until the edge of the hose band (F) goes over the paint mark (G) up to 0.4 in. (11 mm).
