SH-AWD Control Unit Replacement

NOTE: The SH-AWD control unit must be initialized (see SH-AWD CONTROL UNIT INITIALIZATION ) after replacement, otherwise the SH-AWD system will not function.
  1. Remove the rear left side trim panel cover (A).
    Fig 1: Identifying Rear Left Side Trim Panel Cover
    G05447149Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Loosen the SH-AWD control unit mounting bolts (A), then remove the SH-AWD control unit (B).

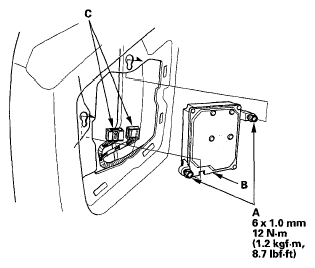

    Fig 2: SH-AWD Control Unit And Mounting Bolts With Torque Specifications
    G05447150Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the SH-AWD control unit connectors (C).
  4. Install the SH-AWD control unit in the reverse order of removal.
