Without navigation

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the dashboard.
  1. Remove the center panel trim (see CENTER PANEL REMOVAL/INSTALLATION ).
  2. Remove the screws (A), then pull out the audio-HVAC display unit (B).

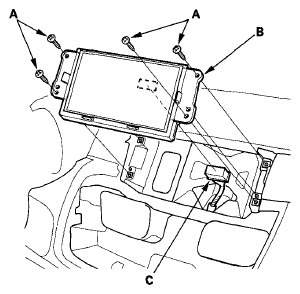

    Fig 1: Identifying Audio-HVAC Subdisplay Unit Screws And Connector
    G06223153Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connector (C) and remove the audio-HVAC display unit.
  4. Install the audio-HVAC display unit in the reverse order of removal.
