Blower Unit Removal/Installation

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
Remove the kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
Cut the plastic cross brace (A) in the glove box opening with diagonal cutters in the area shown. Retain plastic cross brace to be reinstalled later.
NOTE: Use the grommets (B) and the self-tapping screws by installing plastic cross brace.

Fig 1: Identifying Plastic Cross Brace And Grommets
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the wire harness clips (A) and the connector clips (B). Remove the bolts and the glove box frame (C).

Fig 2: Identifying Wire Harness Clip, Connector Clips And Glove Box Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors (A) from the blower motor, throttle actuator control module subharness, and dashboard wire harnesses. Remove the connector clip (B) and the wire harness clips (C).

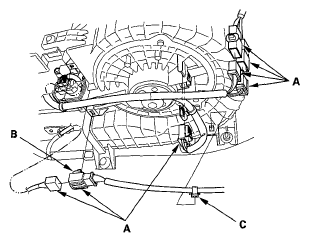

Fig 3: Identifying Wire Harness Clips, Connector Clip And Connectors At Blower Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (A) from the recirculation control motor. Remove the mounting nuts, bolts, and the blower unit (B).

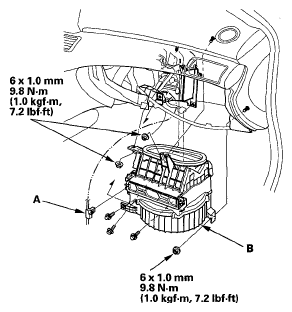

Fig 4: Blower Unit With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the unit in the reverse order of removal. Make sure that there is no air leakage.
