Glove Box Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION  ).
2. Open the glove box (A) and document tray (B). Remove the lid (C), then remove the screws (D) and bolt (E).

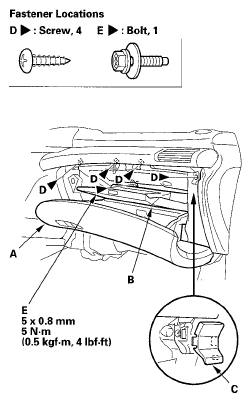

   Fig 1: Glove Box And Document Tray And Fasteners With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Close the glove box (A), then remove the bolts.
   Fig 2: Glove Box And Fasteners With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the glove box (A).
   1. Pull out the glove box, then remove the clips.
   2. Remove the harness clip (B) and the ambient light bulb socket (C).
   3. Disconnect the trunk lid opener main switch connector (D).
      Fig 3: Identifying Glove Box

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the box in the reverse order of removal, and note these items:
   • Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
   • Push the clips into place securely.
   • Make sure the connector is plugged in properly, and the bulb socket is connected securely.
   • Take care not to scratch the passenger's front console cover.
