Glove Box Damper Replacement

NOTE: Take care not to scratch the glove box.
  1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION  ).
  2. Remove the screws (A, B), then remove the glove box damper (C), stopper rubber (D), and washer (E).

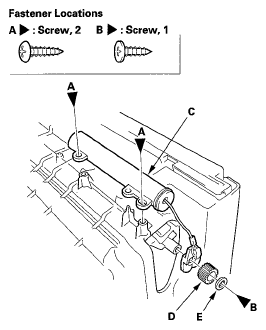

    Fig 1: Identifying Glove Box Damper, Stopper Rubber And Washer
    G05496330Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the damper in the reverse order of removal.
