Hood Latch Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).
Disconnect the hood latch switch connector (A), then remove the connector clip from the body.

Fig 1: Identifying Hood Latch Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then remove the hood latch (A) from the body.

Fig 2: Identifying Hood Latch And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the hood opener cable (B) from the hood latch. Take care not to kink the cable.
Install the latch in the reverse order of removal, and note these items:
- Apply multipurpose grease to the hood latch as indicated by the arrows.
- Make sure the hood opener cable is connected properly and the hood latch switch connector is plugged in properly.
- Make sure the cable actuates the latch before you close the hood.
- Adjust the hood latch alignment (see step 4 on HOOD ADJUSTMENT ).
- Make sure the hood opens properly and locks securely.

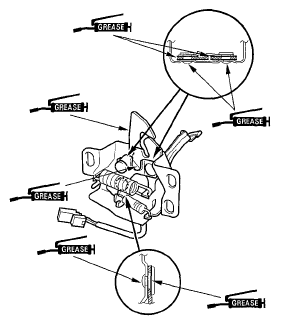

  Fig 3: Identifying Hood Latch Grease Area
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
