ABS indicator does not come on

  1. Turn the ignition switch ON (II), and watch the ABS indicator.

    Does the ABS indicator come on for 2 seconds and then go off?

    1. YES -  The system is OK at this time.
    2. NO -  Go to step 2.
  2. Turn the ignition switch OFF then ON (II) again.

    Does the brake system indicator come on?

    1. YES -  Go to step 3.
    2. NO -  Repair open in the indicator power source circuit:
      • Blown No. 10 (7.5 A) fuse in the under-dash fuse/relay box.
      • Open in the wire between the No. 10 (7.5 A) fuse and the gauge assembly.
      • Open in the circuit inside the fuse box.
  3. Turn the ignition switch OFF.
  4. Disconnect the ABS modulator-control unit 25P connector.
  5. Turn the ignition switch ON (II).

    Does the ABS indicator come on?

    1. YES -  Check for loose terminals in the ABS modulator-control unit 25P connector. If necessary, substitute a known-good ABS modulator-control unit, and recheck.
    2. NO -  Go to step 6.
  6. Turn the ignition switch OFF.
  7. Remove the gauge assembly (see GAUGE ASSEMBLY REPLACEMENT ).
  8. Disconnect the gauge assembly connector A (22P) ('02-04 models) or gauge assembly connector B (20P) ('05-06 models).
  9. Check for continuity between the gauge assembly connector A (22P) terminal No. 14 ('02-04 models) or gauge assembly connector B (20P) terminal No. 12 ('05-06 models) and body ground.

    '02-04 models

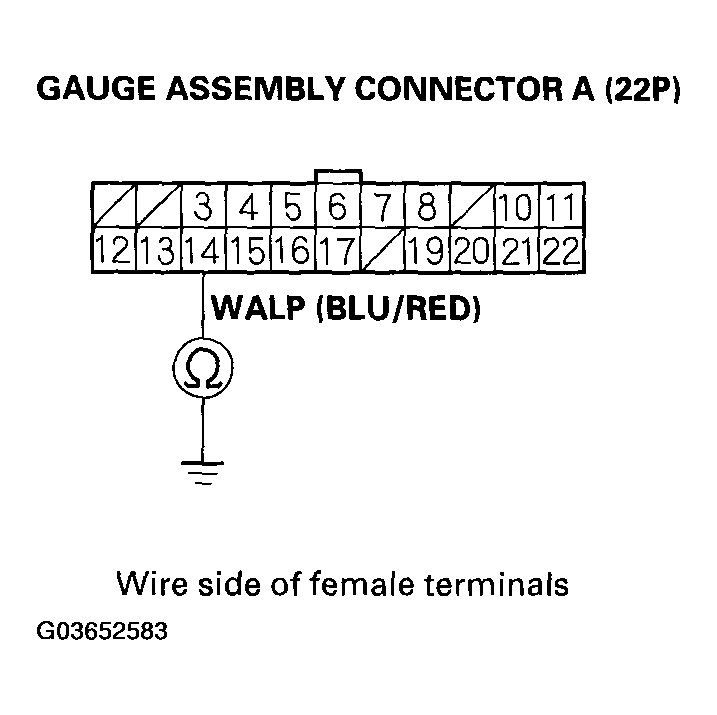

    Fig 1: Identifying Gauge Assembly Connector A (22P) Terminal
    G03652583Courtesy of AMERICAN HONDA MOTOR CO., INC.

    '05-06 models

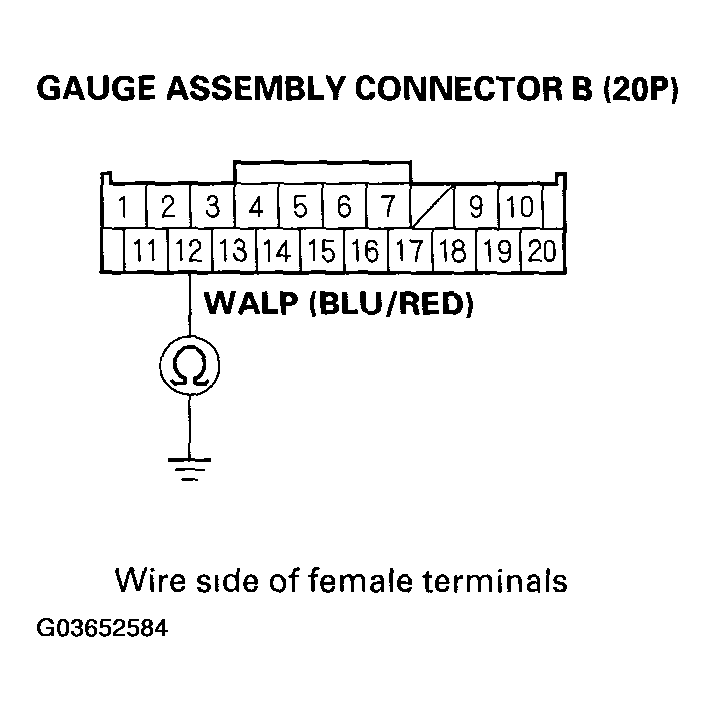

    Fig 2: Gauge Assembly Connector B (20P) Terminal
    G03652584Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES -  Repair short to body ground in the wire between the gauge assembly and the ABS modulator-control unit.
    2. NO -  Go to step 10.
  10. '02-04 models: Connect the gauge assembly connector A (22P), and disconnect the gauge assembly connector B (18P).

    '05-06 models: Connect the gauge assembly connector B (20P), and disconnect the gauge assembly connector A (16P).

  11. '02-04 models: Check for continuity between the gauge assembly connector B (18P) terminal No. 18 and body ground.

    '05-06 models: Check for continuity between the gauge assembly connector A (16P) terminal No. 15 and body ground.

    '02-04 models

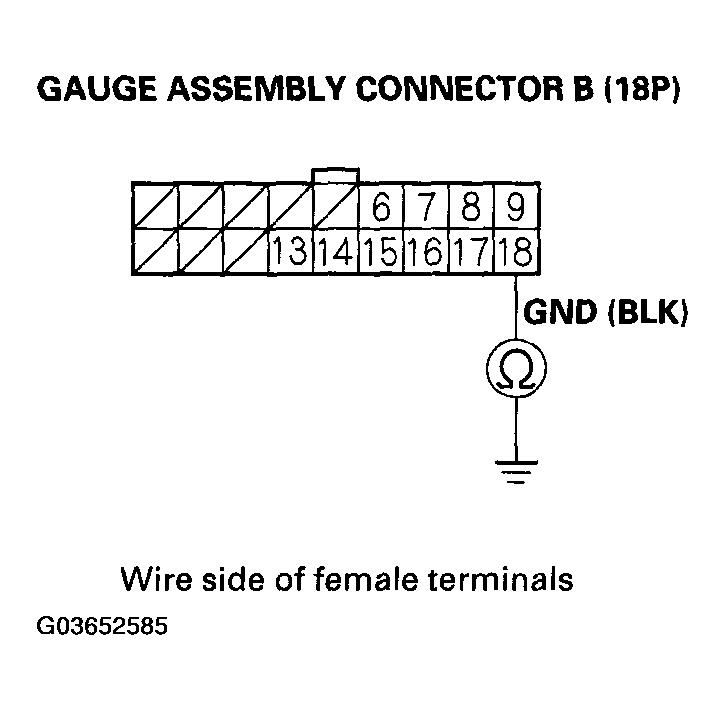

    Fig 3: Identifying Gauge Assembly Connector B (18P) Terminal
    G03652585Courtesy of AMERICAN HONDA MOTOR CO., INC.

    '05-06 models

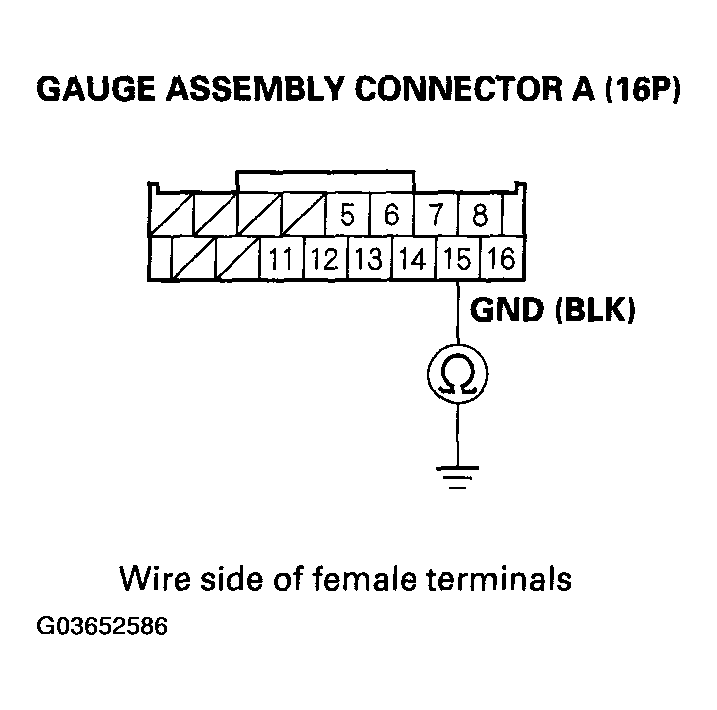

    Fig 4: Gauge Assembly Connector A (16P) Terminal
    G03652586Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES -  Check for loose terminals in the gauge assembly connectors. If the connector is OK, replace the gauge assembly (see GAUGE ASSEMBLY REPLACEMENT ).
    2. NO -  Repair open in the wire between the gauge assembly and body ground (G401).
