Gauge Assembly Replacement

  1. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ), then remove the upper column cover (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  2. Place a clean shop towel under the gauge assembly to prevent scratching it and the steering column cover.

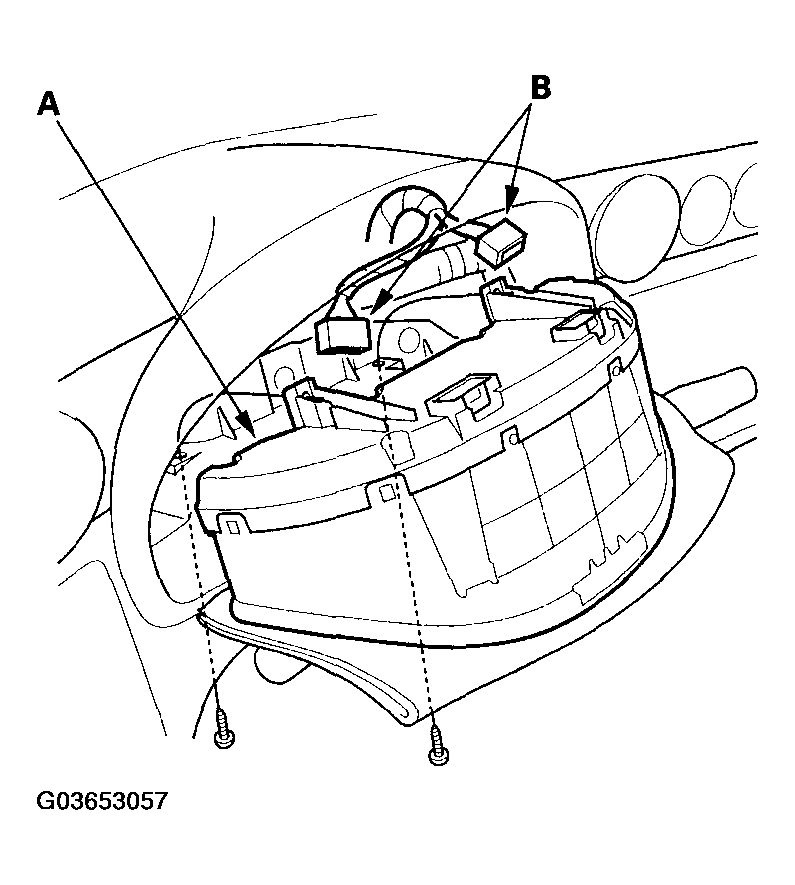

  3. Remove the two mounting screws from the gauge assembly (A).
    Fig 1: Removing Two Mounting Screws From Gauge Assembly
    G03653057Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the connectors (B), and remove the gauge assembly.
  5. Install the gauge assembly in the reverse order of removal.
