Starter Reassembly

WARNING: This page is about a different car, the 1997 Acura 1.6EL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use the illustration on STARTER OVERHAUL as reference for reassembly.

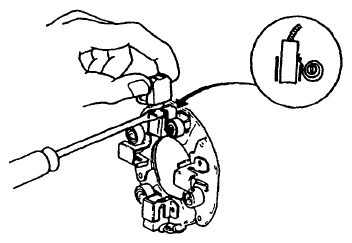

Pry back each brush spring with a screwdriver, then position the brush about halfway out of its holder, and release the spring to hold it there.

Fig 1: Prying Brush Spring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the armature in the housing. Next, pry back each brush spring again, and push the brush down until it seats against the commutator, then release the spring against the end of the brush.

Fig 2: Installing Armature In Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

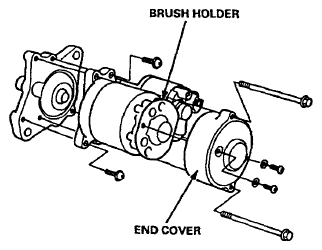

Install the end cover on the brush holder.

Fig 3: Identifying End Cover On Brush Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
