Starter Overhaul

WARNING: This page is about a different car, the 1997 Acura 1.6EL. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Disconnect the battery negative cable before removing the starter.

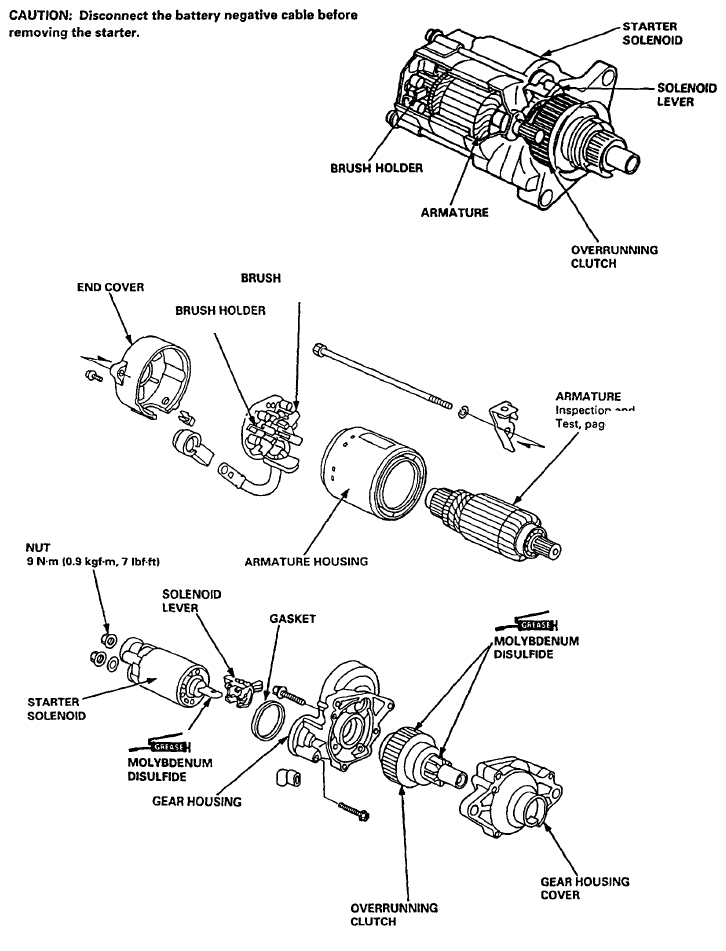

Fig 1: Identifying Starter Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
