Front Seat

Remove seat track end covers and seat track mounting bolts. Lift front seat and disconnect seat belt switch connector, power seat connector and seat heater connector (some models). See Fig 1 . Remove headrest and carefully remove front seat through door opening. To install, reverse removal procedure. Tighten seat track mounting bolts to 27 ft. lbs. (37 N.m).

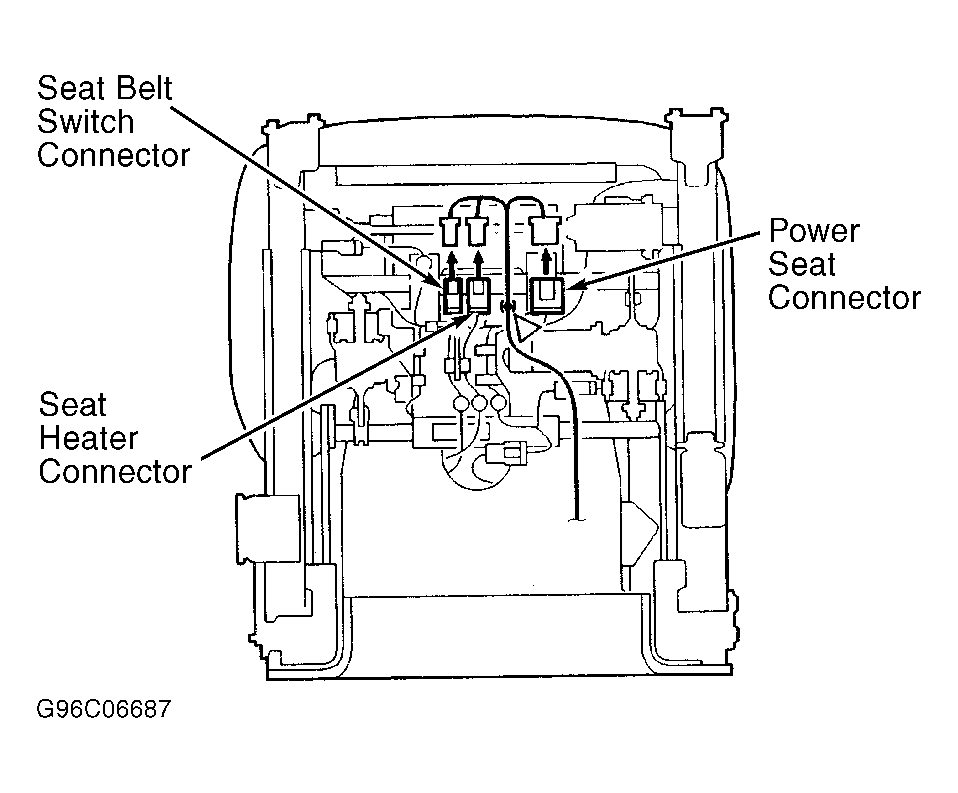

Fig 1: Identifying Front Seat Wiring Connectors

Courtesy of AMERICAN HONDA MOTOR CO., INC.
