Driver's Power Seat Motor Test

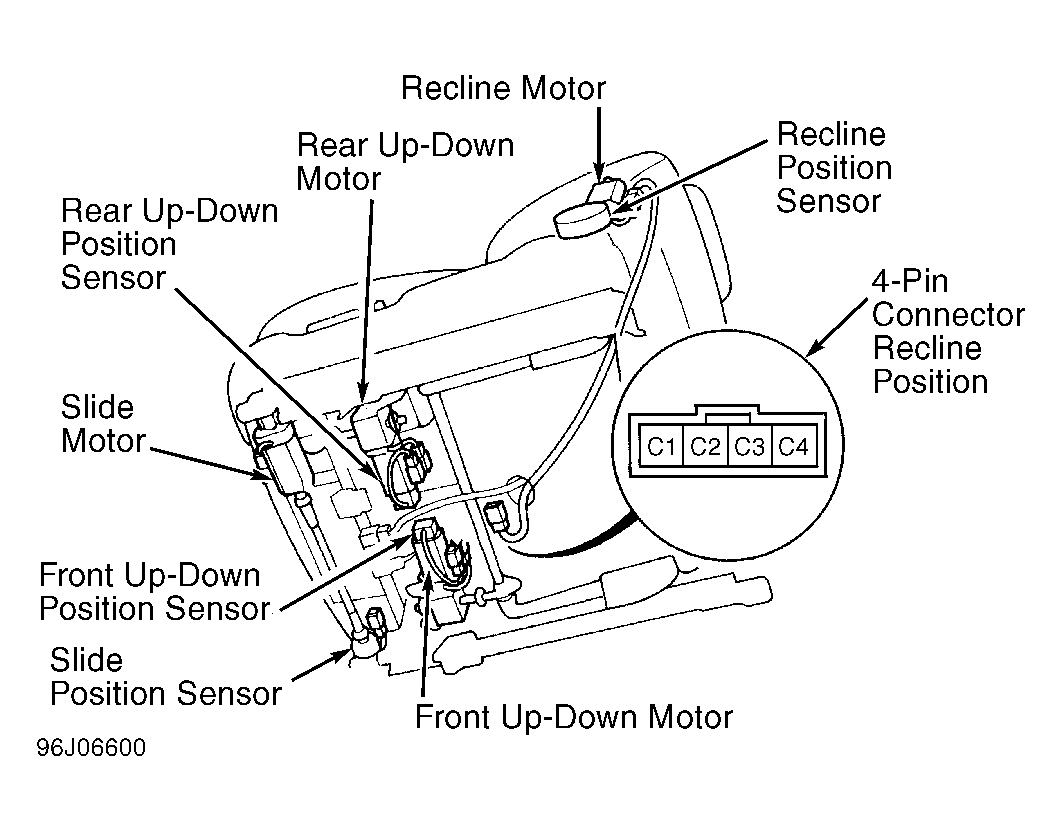

Remove driver's seat. See FRONT SEAT under REMOVAL & INSTALLATION. Disconnect each power seat motor. See Fig 1 . Apply battery voltage to each motor as specified in DRIVER'S POWER SEAT MOTOR TESTS. If any motor fails any portion of test, replace faulty motor.
DRIVER'S POWER SEAT MOTOR TEST
| Position | Battery (+) & (-) | |
|---|---|---|
| Slide Motor | ||
| Forward | 1 & 2 | |
| Backward | 2 & 1 | |
| Front Up-Down Motor | ||
| Up | 1 & 2 | |
| Down | 2 & 1 | |
| Rear Up-Down Motor | ||
| Up | 1 & 2 | |
| Down | 2 & 1 | |
| Recline Motor | ||
| Forward | 1 & 2 | |
| Backward | 2 & 1 | |
