Propeller Shaft: Components

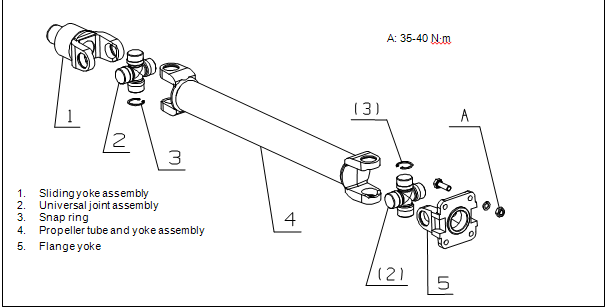

Fig 1: Exploded View Of Propeller Shaft With Torque Specifications

G00499386

Courtesy of LIUZHOU WULING MOTORS CO., LTD.
