Fuse Panel Identification

The fuse panel is located in the engine compartment, on the right side of the ventilation duct.

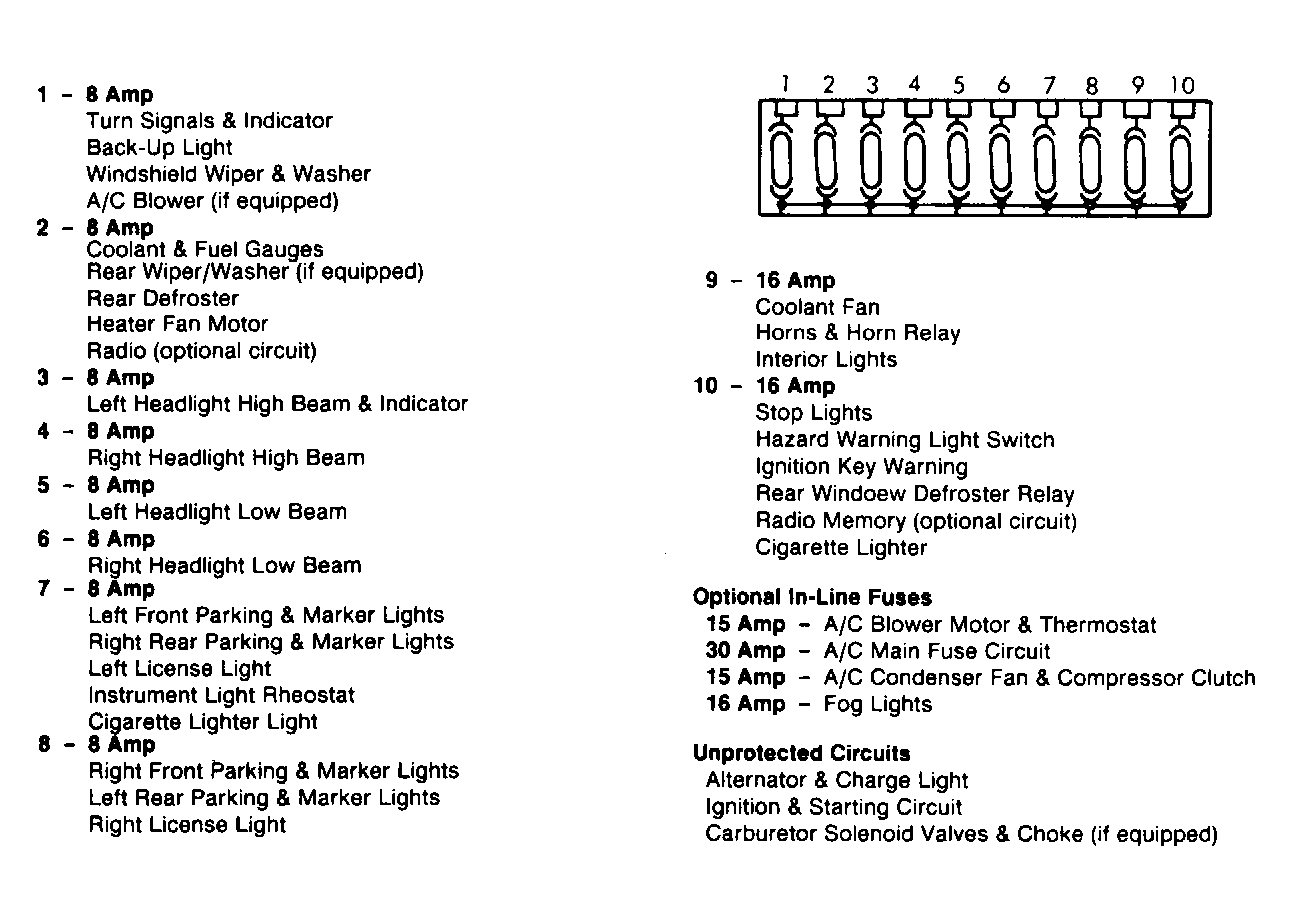

Fig 1: Fuse Panel Identification

G90F02011

Courtesy of YUGO OF AMERICA INC.
