Panel Steering Column [2018-2022]: Removal

VEHICLES WITH DRIVER'S KNEE AIRBAG

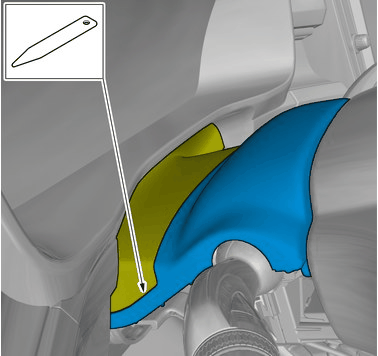

Courtesy of GENERAL MOTORS COMPANY

Courtesy of GENERAL MOTORS COMPANY

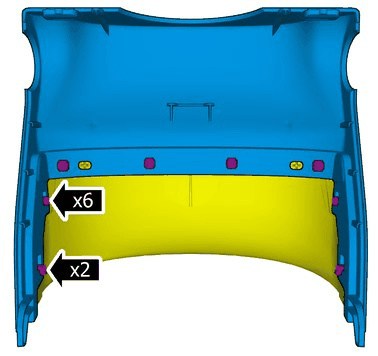

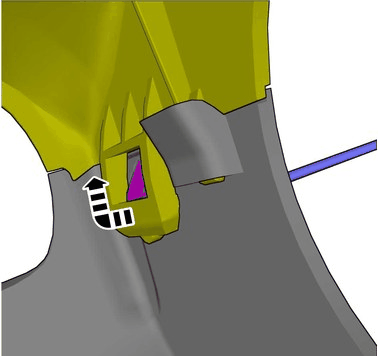

NOTE:

The graphic shows the back of the component before removal.

Courtesy of GENERAL MOTORS COMPANY

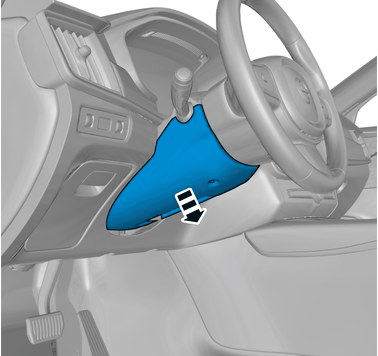

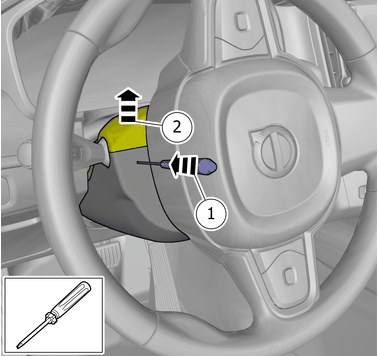

Detach the panel.

Courtesy of GENERAL MOTORS COMPANY

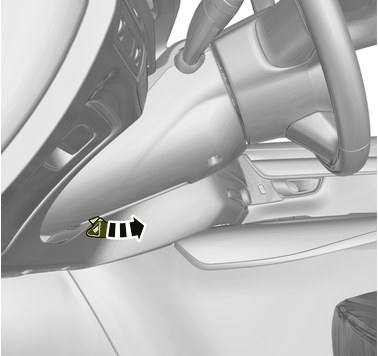

Remove the marked part.

Courtesy of GENERAL MOTORS COMPANY

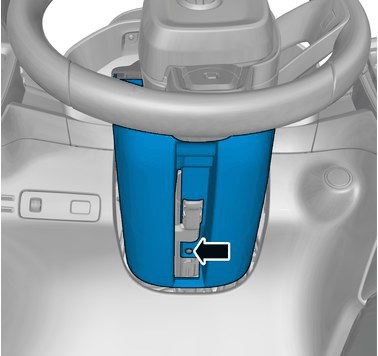

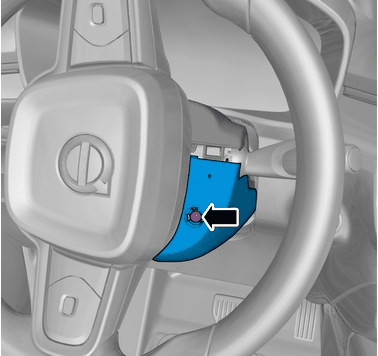

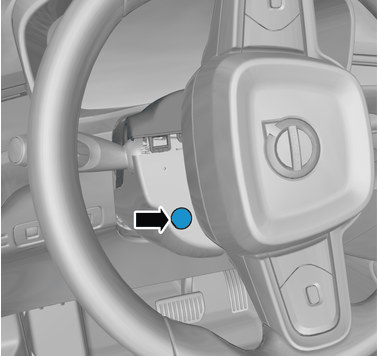

Remove the screw.

Courtesy of GENERAL MOTORS COMPANY

Courtesy of GENERAL MOTORS COMPANY

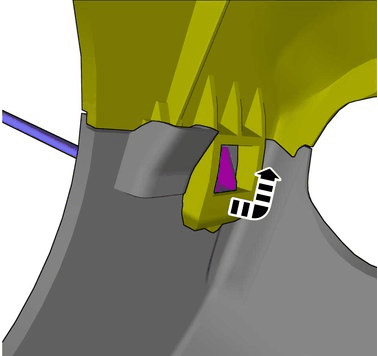

NOTE:

The graphic shows the back of the component before removal.

Courtesy of GENERAL MOTORS COMPANY

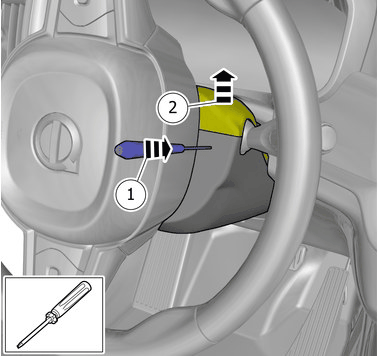

Detach the panel.

Courtesy of GENERAL MOTORS COMPANY

Remove the marked part.

Courtesy of GENERAL MOTORS COMPANY

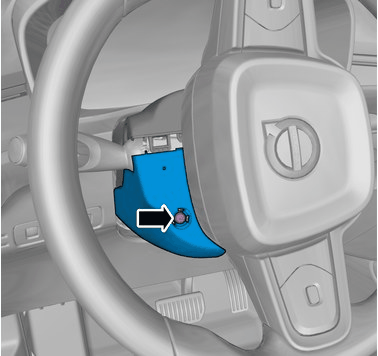

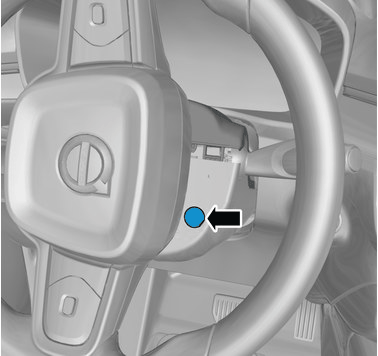

Remove the screw.

Courtesy of GENERAL MOTORS COMPANY

Remove the screw.

Courtesy of GENERAL MOTORS COMPANY

Courtesy of GENERAL MOTORS COMPANY

Courtesy of GENERAL MOTORS COMPANY

Remove the marked part.

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The graphic shows the back of the component before removal.

Courtesy of GENERAL MOTORS COMPANY

Remove the part carefully

Remove the marked part.

VEHICLES WITHOUT DRIVER SIDE KNEE AIRBAG

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The graphic shows the back of the component before removal.

Courtesy of GENERAL MOTORS COMPANY

Detach the panel.

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The graphic shows the back of the component before removal.

Courtesy of GENERAL MOTORS COMPANY

Courtesy of GENERAL MOTORS COMPANY

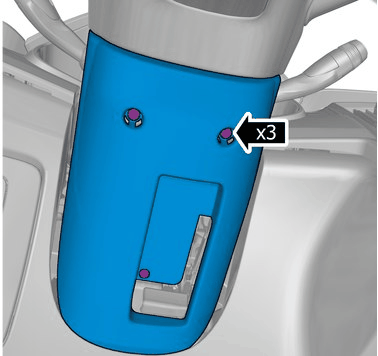

Remove the screws.

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The graphic shows the back of the component before removal.

Courtesy of GENERAL MOTORS COMPANY

Remove the part carefully

Remove the marked part.
