Fire Extinguisher [2018-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

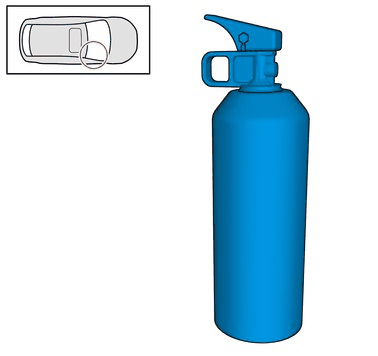

GLL1036880Courtesy of GENERAL MOTORS COMPANY
NOTE:

Orientation view

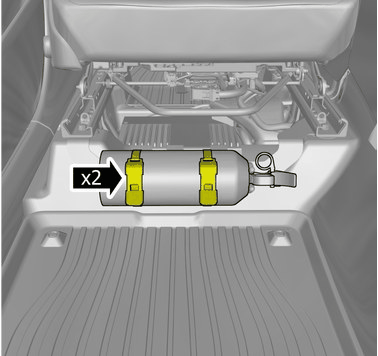

GLL1006060Courtesy of GENERAL MOTORS COMPANY

Loosen the marked detail/details.

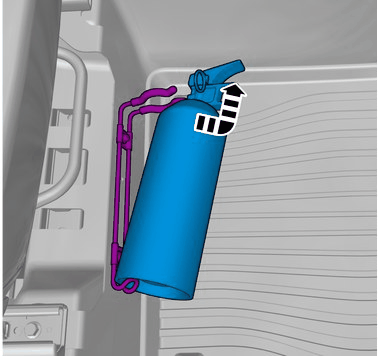

GLL1006958Courtesy of GENERAL MOTORS COMPANY

Remove the marked part.

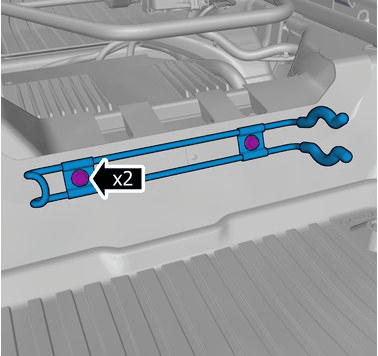

GLL1028646Courtesy of GENERAL MOTORS COMPANY

Remove the screws.

Remove the marked part.

Torque:  M6, 10 Nm

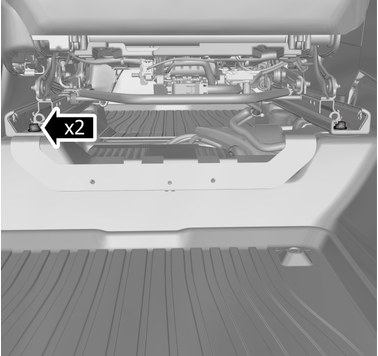

GLL1007453Courtesy of GENERAL MOTORS COMPANY

Remove the screws.

Torque:  Front seat to body, 40 Nm

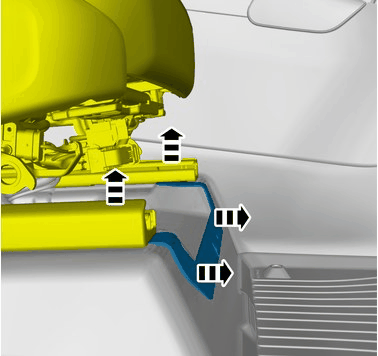

GLL1016108Courtesy of GENERAL MOTORS COMPANY

Lift the marked component up

Remove the marked part.
