OEM General Information: Administration: Turbocharger: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

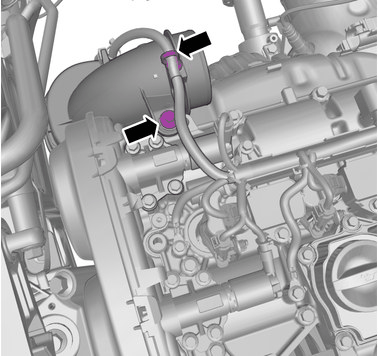

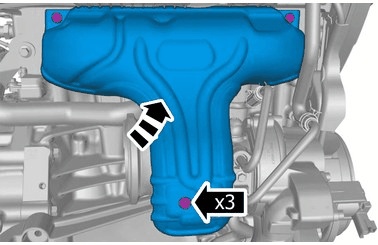

Loosen the screws.

Remove the marked part.

Remove the air filter housing. Refer to: AIR CLEANER HOUSING

Courtesy of VOLVO CARS CORPORATION

Release the connector's catch.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

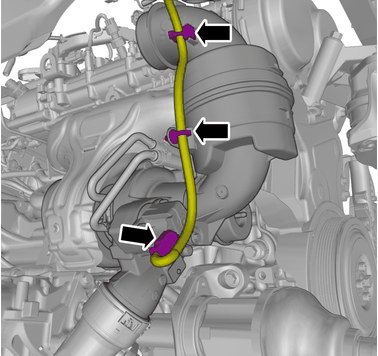

Remove the cable harness clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Release the connector's catch.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

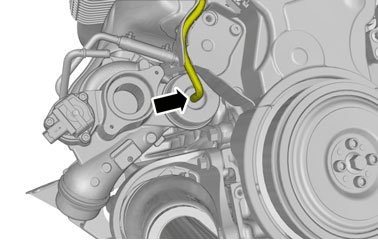

Remove the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

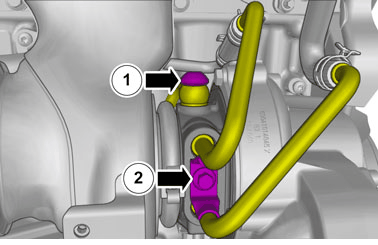

Release the lock.

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

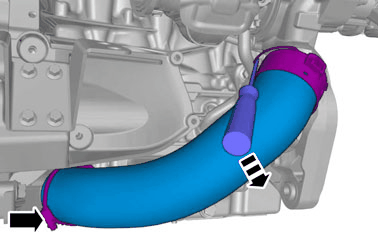

Loosen the hose clamp.

Courtesy of VOLVO CARS CORPORATION

Undo the hose from the connection.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

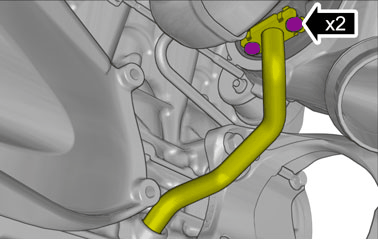

Remove the screw.

Torque: M6, 10Nm

Remove the clip.

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Release the connector's catch.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

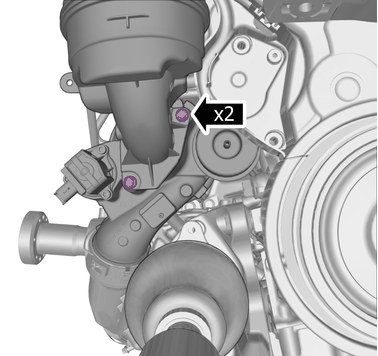

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

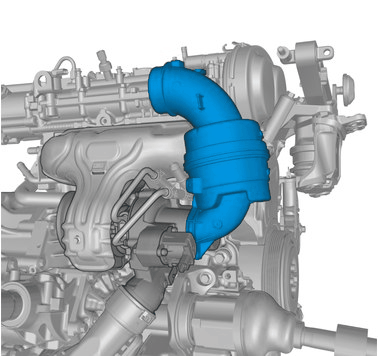

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Undo the hose from the connection.

Fold marked part aside.

Perform cooling system draining, charging and bleeding. Refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove particle filter petrol. Refer to: PARTICLE FILTER GASOLINE

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Release the lock.

A click confirms that the component is in the correct position.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

NOTE:

Make sure that the seal is correctly located.

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

Torque: Oil pressure pipe to the turbocharger, 26Nm
Torque: M6, 10Nm

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

Torque: M6, 10Nm

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

2018-2022 B4204T23

2018-2021 B4204T27

2018-2022 B4204T28

2020-2022 B4204T39

Torque: Exhaust manifold to cylinder head, nut
- Stage 1: 20Nm
- Stage 2: 20Nm
Torque: Exhaust manifold to cylinder head, bolt
- Stage 1: 20Nm
- Stage 2: 20Nm

Courtesy of VOLVO CARS CORPORATION

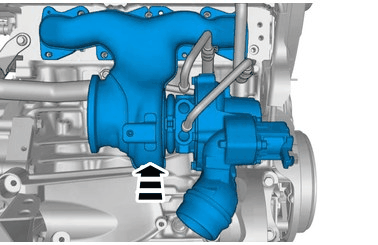

Remove the marked part.
