Removal And Installation
REMOVAL
Removal steps in this procedure may contain installation details.
Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE
See information about part overview. Refer to: CLIMATE UNIT DAMPER MOTORS

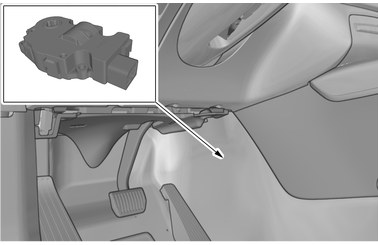

Orientation view

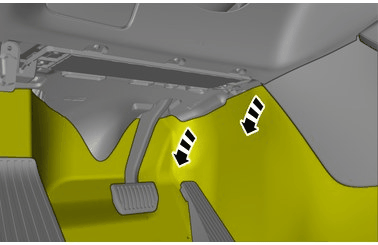

Fold the carpet aside.
VEHICLES WITHOUT SERVICE KIT

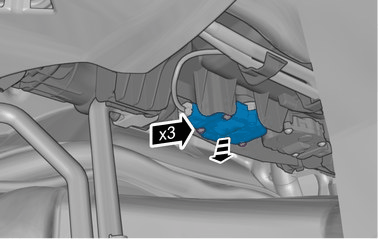

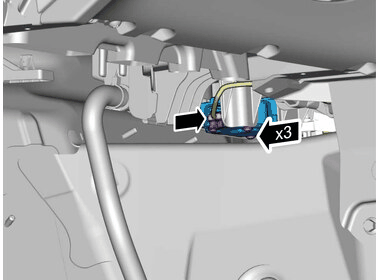

Remove the screws.
Remove the part carefully

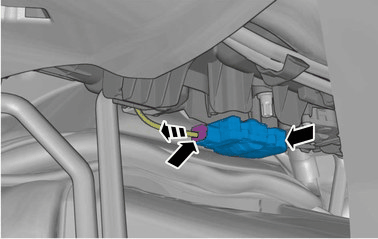

Disconnect the connector.

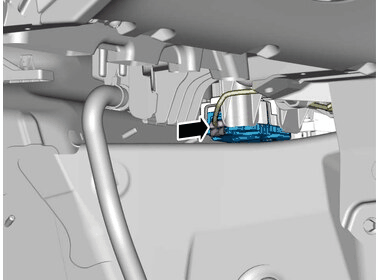

Remove the marked part.
Be extra careful when removing or installing this component.

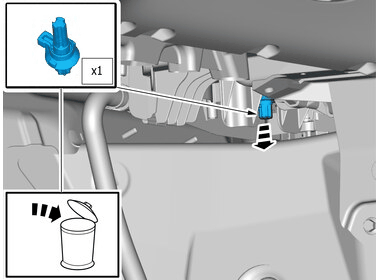

Remove the part carefully
Remove the marked part.

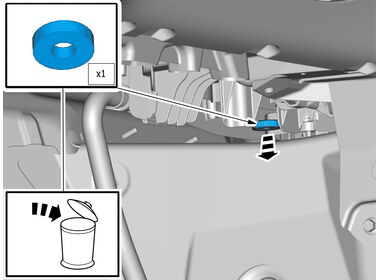

Remove the part carefully
Remove the marked part.
INSTALLATION

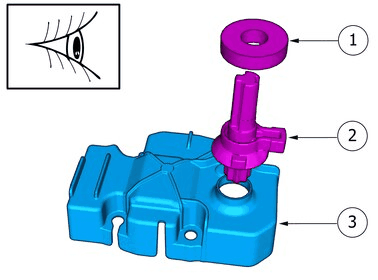

Install the following items:
- Sealing
- Shaft adapter
- Cover
Use: Service kit, 32275628
Make sure that the components is positioned correctly.
Install the marked component.
Install the screws.
Connect the connector.
To install, reverse the removal procedure.
VEHICLES WITH SERVICE KIT
Remove the screws.
Remove the part carefully
Disconnect the connector.
Remove the marked part.
INSTALLATION
Be extra careful when removing or installing this component.
Install the marked component.
Install the screws.
Connect the connector.
To install, reverse the removal procedure.
ALL VEHICLES
Identify according to: Diagnostics / Components / Control modules/ Climate Control Module (CCM) / Diagnostic sequences / Identifying damper motors
Calibrate according to: Diagnostics / Components / Control modules/ Climate Control Module (CCM) / Diagnostic sequences / Calibrating damper motors
Perform climate unit, checking. Refer to: CLIMATE CONTROL SYSTEM, CHECK
