Super Charger, Transferring Components: Removal

NOTE:

Removal steps in this procedure may contain installation details.

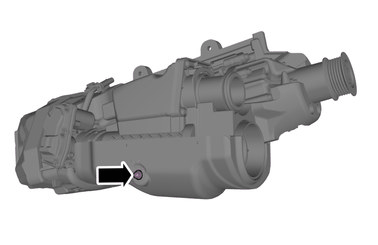

GLL1028556

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M6, 10Nm

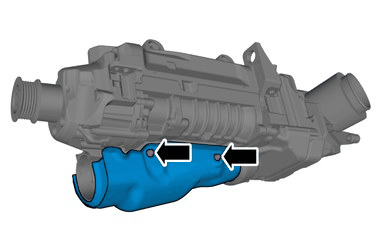

GLL1013403

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Torque: M6, 10Nm

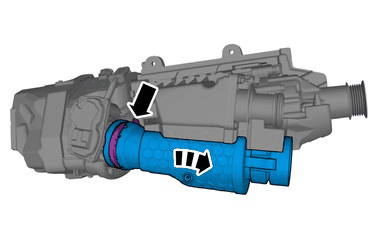

GLL1016001

Courtesy of VOLVO CARS CORPORATION

HINT: Mark the location of the component.

Loosen the hose clamp.

Remove the marked part.

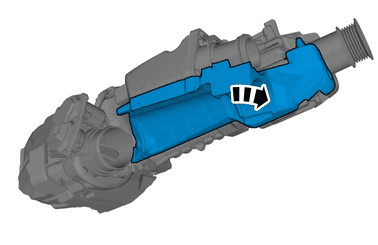

GLL1039333

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

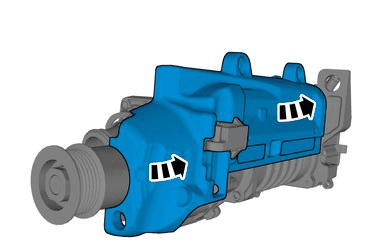

GLL1024340

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

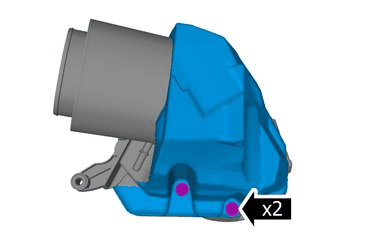

GLL1040823

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

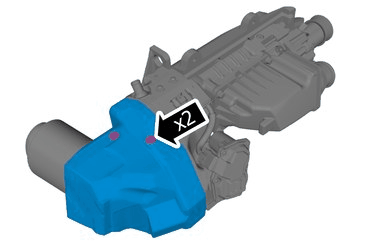

GLL1013857

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

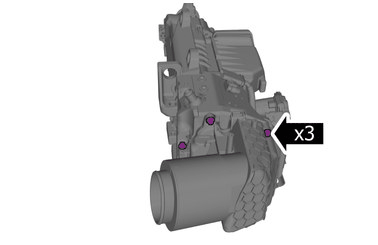

GLL1035529

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

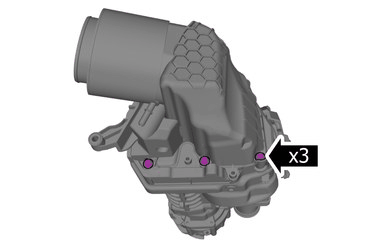

GLL1019893

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

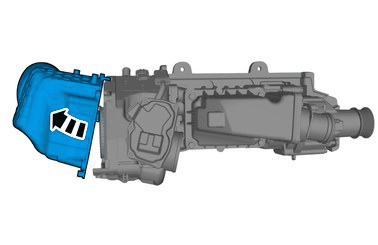

GLL1028277

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the seal is correctly located.

Remove the marked part.

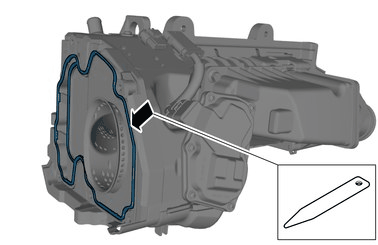

GLL1007119

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the seal remains correctly located.

NOTE:

Use a new seal.

Remove the marked part.

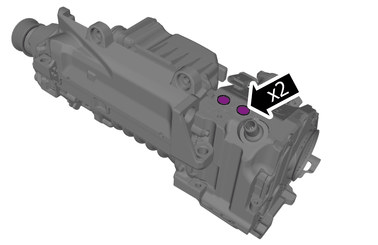

GLL1034187

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

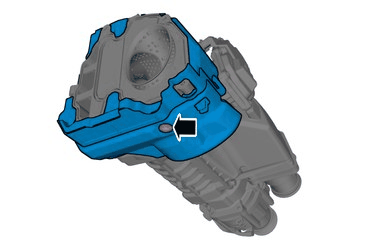

GLL1012578

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.

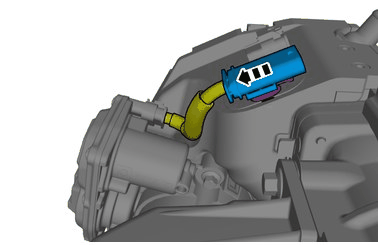

GLL1025307

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

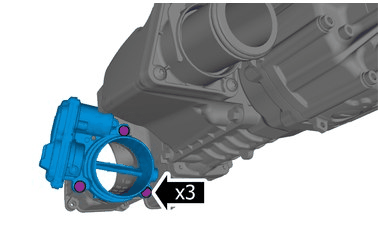

GLL1001806

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Remove the screws.

Remove the marked part.

Torque: M6, 10Nm

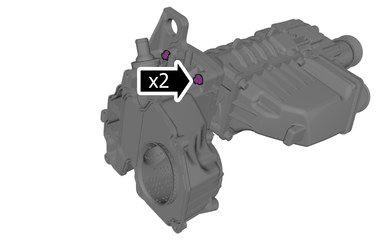

GLL1035892

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

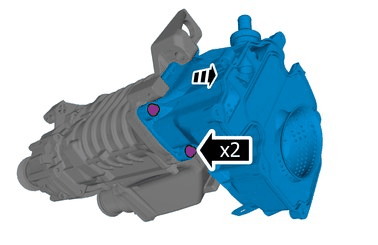

GLL1020761

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Remove the screws.

Remove the marked part.

Torque: M6, 10Nm

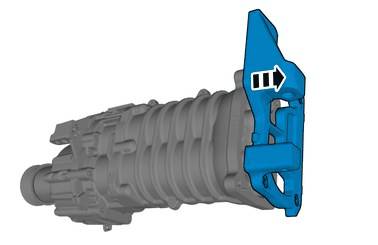

GLL1026411

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Remove the marked part.

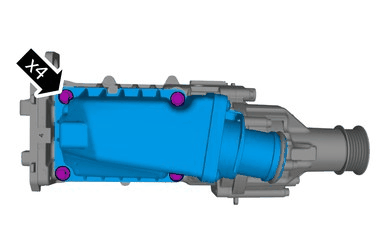

GLL1037824

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Remove the screws.

Remove the marked part.

Torque: M8, 24Nm
