Injector Seal: Installation

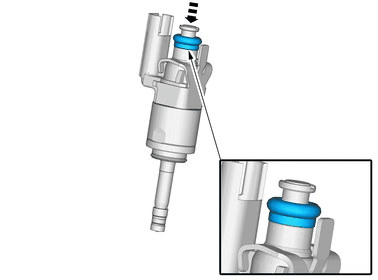

GLL1056463

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position.

Install the marked components.

GLL1053548

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

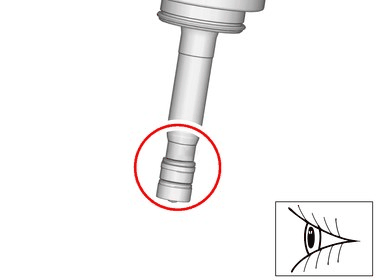

GLL1050080

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component is clean and free of foreign material.

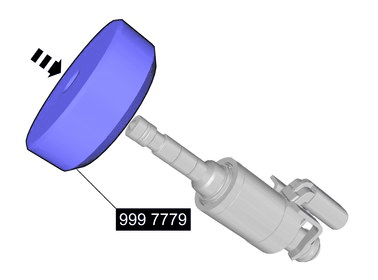

GLL1050632

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the placing of the tool.

Special Tool: 999 7779 Installation tools

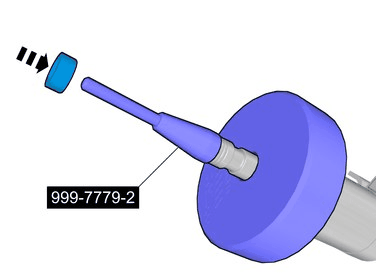

GLL1054794

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the placing of the tool.

NOTE:

Use a new seal.

Special Tool: 999 7779 Installation tools

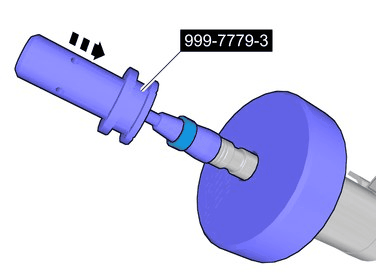

GLL1050857

Courtesy of VOLVO CARS CORPORATION

Pull the component in direction of the arrow.

Special Tool: 999 7779 Installation tools

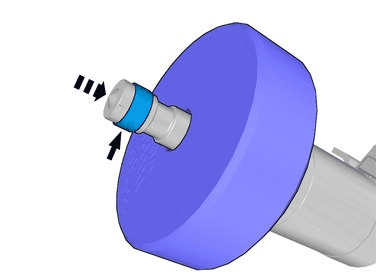

GLL1007199

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Use hands only.

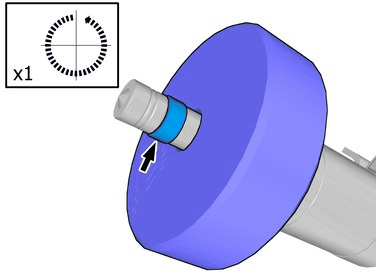

GLL1029060

Courtesy of VOLVO CARS CORPORATION

NOTE:

Turn the component.

Use hands only.

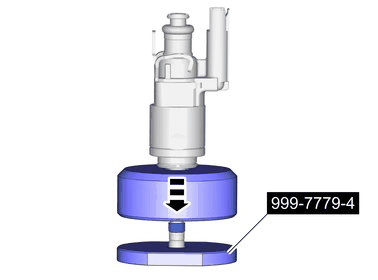

GLL1050061

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Pull carefully.

CAUTION:

Note the placing of the tool.

Pull the component in direction of the arrow.

Special Tool: 999 7779 Installation tools

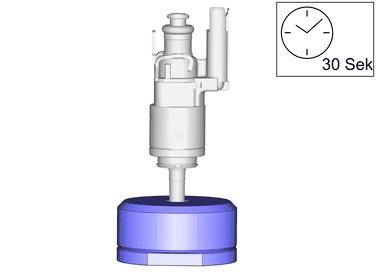

GLL1051835

Courtesy of VOLVO CARS CORPORATION

WARNING:

Wait for the time specified.

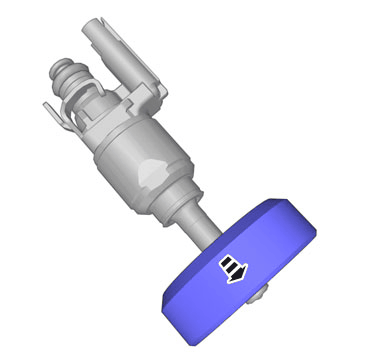

GLL1010633

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Pull carefully.

Remove the Special Tool.
