Brake Pads Front, Polestar Performance (Variant Code Re09): Removal

NOTE:

Removal steps in this procedure may contain installation details.

See information about safety information brake system. Refer to: SAFETY INFORMATION BRAKE SYSTEM

Remove the wheel. Refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that no load is placed on the brake hose.

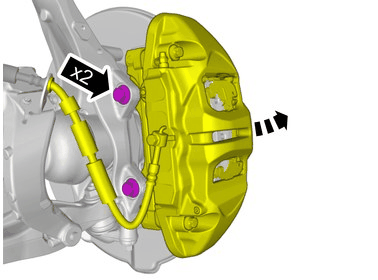

Remove the screws.

Fold marked part aside.

Torque: Mount front brake caliper, 200Nm

Courtesy of VOLVO CARS CORPORATION

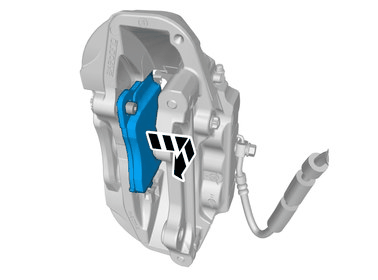

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

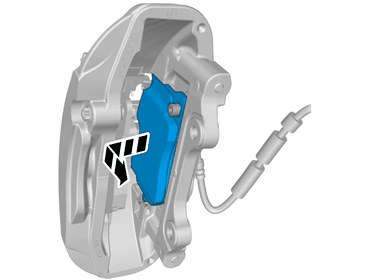

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

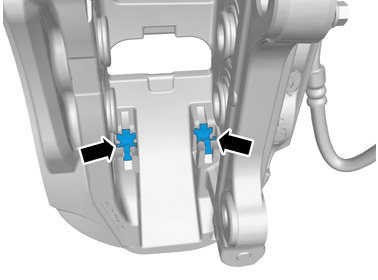

Remove the marked parts.

Courtesy of VOLVO CARS CORPORATION

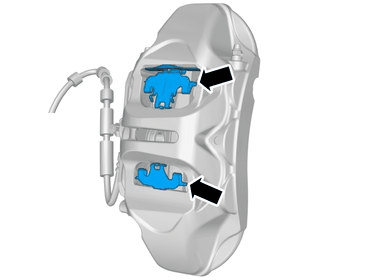

Remove the marked parts.

Courtesy of VOLVO CARS CORPORATION

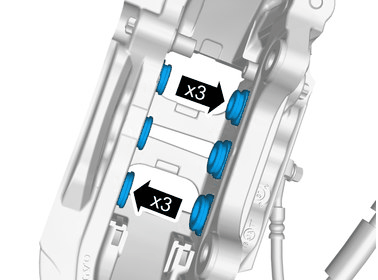

Press the marked component.
