Brake Caliper Front, Polestar Performance (Variant Code Re09): Removal

NOTE:

Removal steps in this procedure may contain installation details.

See information about safety information brake system. Refer to: SAFETY INFORMATION BRAKE SYSTEM

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use suitable paper to absorb any escaping fluid.

NOTE:

Use new seals.

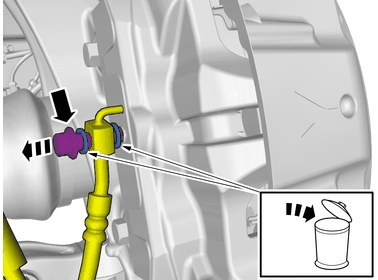

Undo the hose from the connection.

Torque: Brake hose (screw) to brake caliper, 40Nm

Courtesy of VOLVO CARS CORPORATION

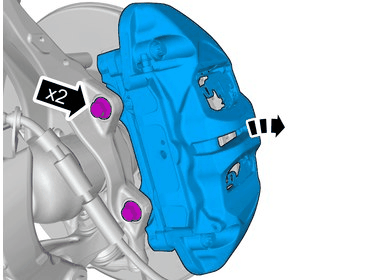

Remove the screws.

Torque: Mount front brake caliper, 200Nm

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
