Engine Coolant Temperature Sensor [2018, B4204T23]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Drain cooling system, draining, filling, and bleeding. Refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove the air filter housing. Refer to: AIR CLEANER HOUSING

Courtesy of VOLVO CARS CORPORATION

NOTE:

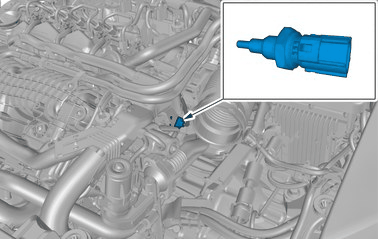

Orientation view

Courtesy of VOLVO CARS CORPORATION

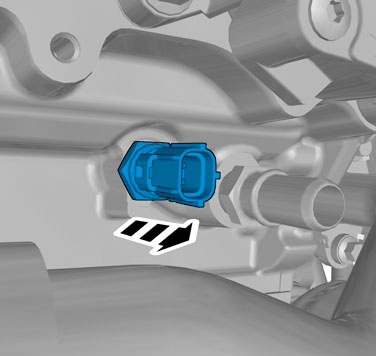

Release the lock.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

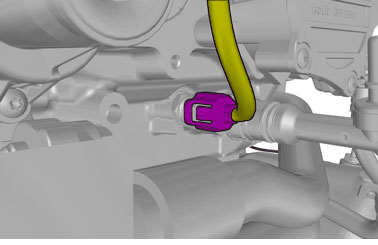

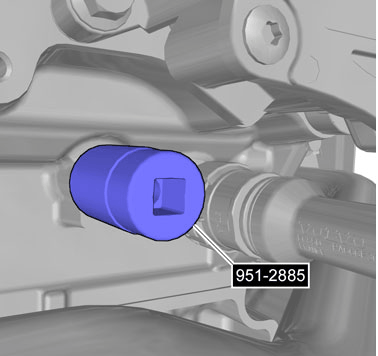

Torque: Temperature sensor coolant to engine, 22 Nm

Courtesy of VOLVO CARS CORPORATION

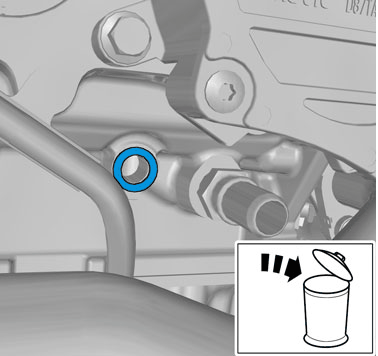

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.
