Lower Control Arm With Variant Code RI02 Or RI03: Removal

Remove relevant side air suspension, rear. Refer to: AIR SUSPENSION, REAR

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

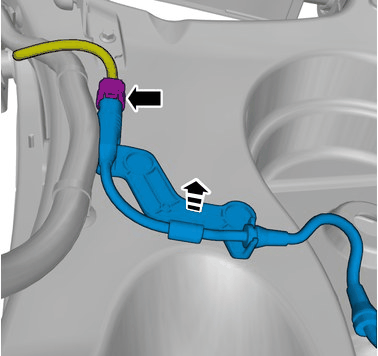

Disconnect the connector.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.
