Dashboard, Transferring Components: Removal

NOTE:

Removal steps in this procedure may contain installation details.

See the safety information regarding pyrotechnic systems. Refer to: SAFETY INFORMATION PYROTECHNICAL SYSTEMS

Courtesy of VOLVO CARS CORPORATION

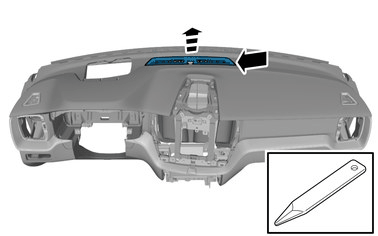

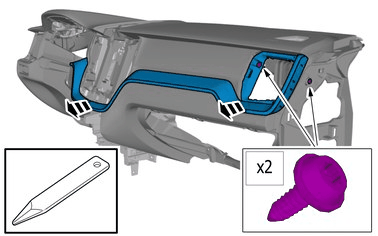

Use: Interior trim remover

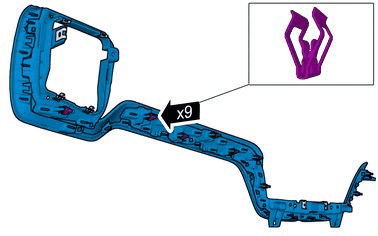

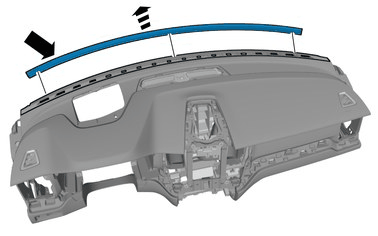

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

WARNING:

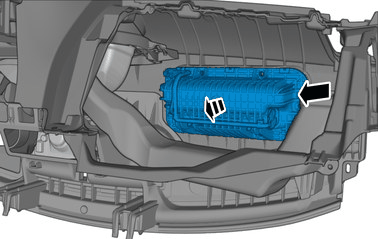

Take extra care when handling supplemental restraint system (SRS) components.

Remove the screws.

Torque: Airbag, to Dash board, 9Nm

Courtesy of VOLVO CARS CORPORATION

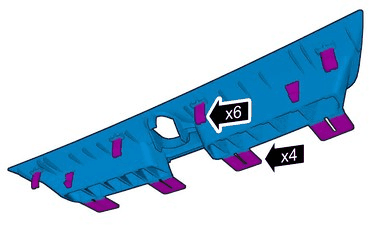

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the part carefully

Use: Interior trim remover

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

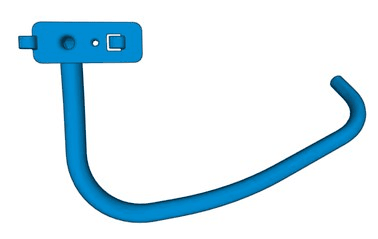

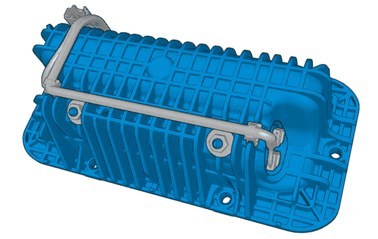

Note the routing of the lines and hoses.

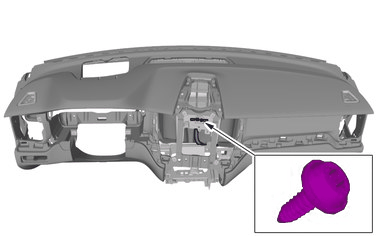

Remove the screw.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

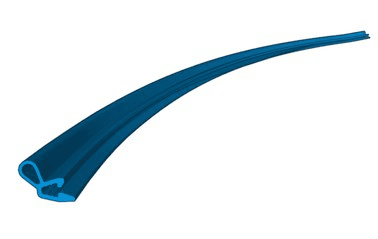

Make sure that the seal is correctly located.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
