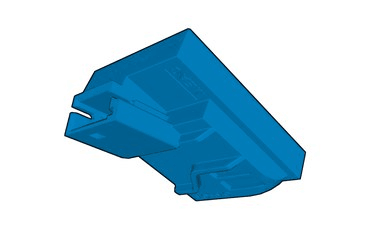

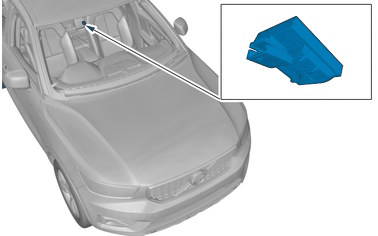

In-Vehicle Humidity Sensor [2018-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

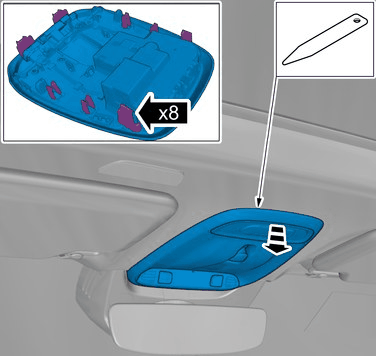

Remove the part carefully

Use:  Interior trim remover

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

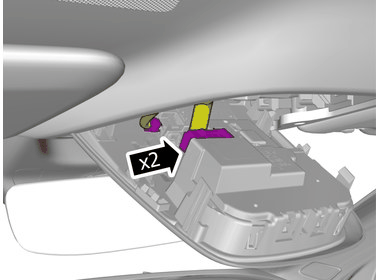

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

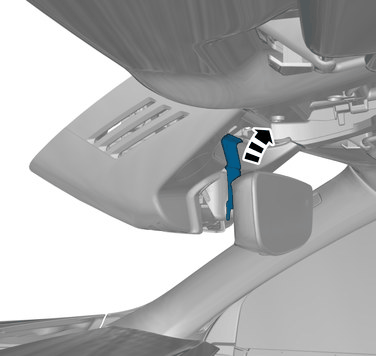

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

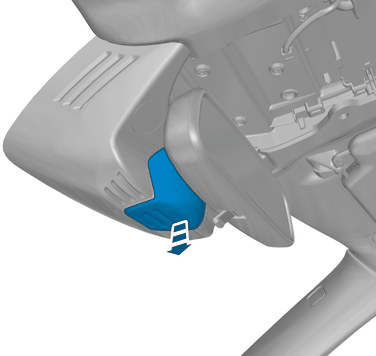

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

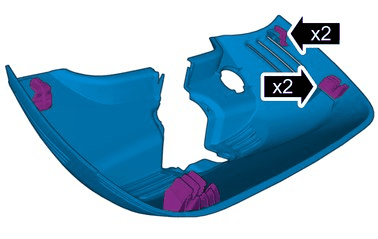

The graphic shows the back of the component.

Courtesy of VOLVO CARS CORPORATION

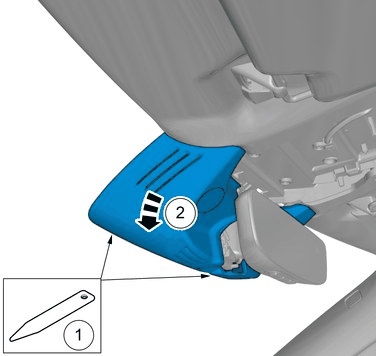

Remove the part carefully

Use:  Interior trim remover

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

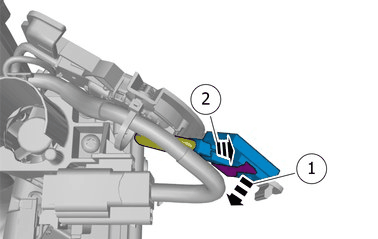

1. Release the lock.
2. Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

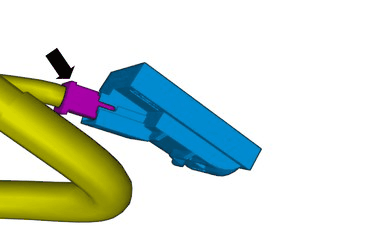

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION
