Climate Control Module (CCM) [2018-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Remove glove compartment. Refer to: GLOVE COMPARTMENT

Courtesy of VOLVO CARS CORPORATION

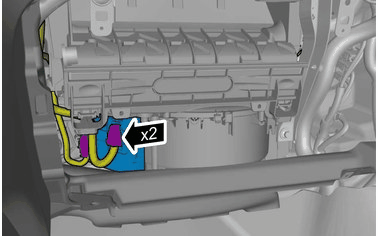

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

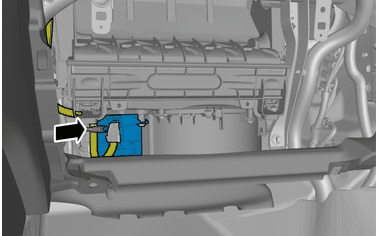

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

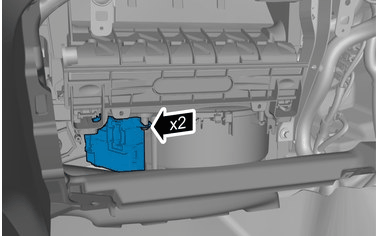

Remove the screws.

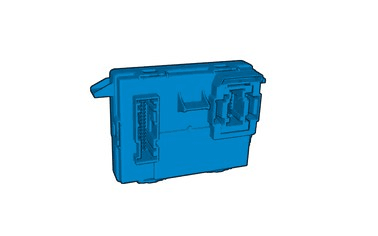

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
