Blower Module, Front [2018-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Remove glove compartment. Refer to: GLOVE COMPARTMENT

Courtesy of VOLVO CARS CORPORATION

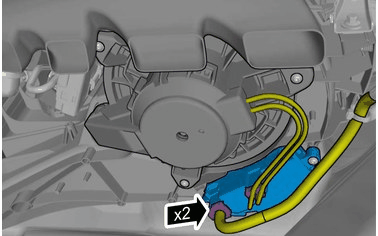

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

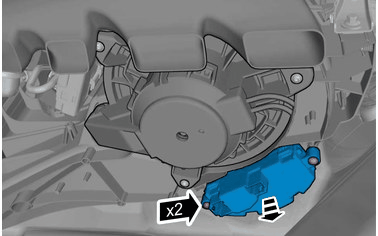

Remove the screws.

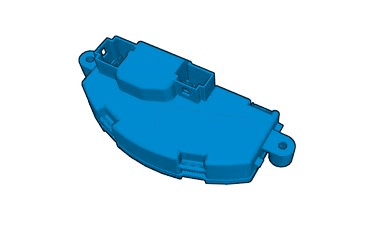

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
