Identification Arrows

Courtesy of VOLVO CARS CORPORATION

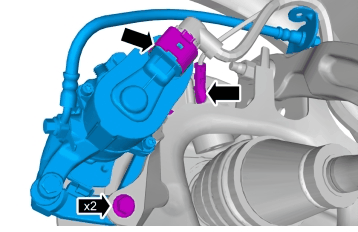

Arrows that identify parts to be removed.

Designation x2 in an arrow indicates that two screws shall be removed to loosen the brake caliper.

Courtesy of VOLVO CARS CORPORATION

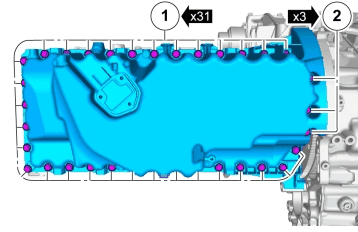

All attachments covered by a quantity designation are of the same type and size.
