Water Cooled Condenser Outlet Sensor: Installation

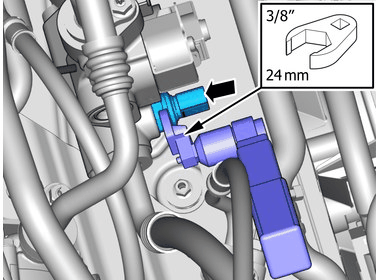

Install the marked component.
Torque: A/C pressure and temperature sensor, 7Nm
CAUTION:
Only use the specified material to lubricate the seals.
NOTE:
Use new seals.
NOTE:
Make sure that the seal is correctly located.
To install, reverse the removal procedure.
Fill refrigerant, filling. Refer to: REFRIGERANT, FILLING
Perform climate unit, checking. Refer to: CLIMATE CONTROL SYSTEM, CHECK
