Transmission Oil Level - Checking: Filling

Courtesy of VOLVO CARS CORPORATION

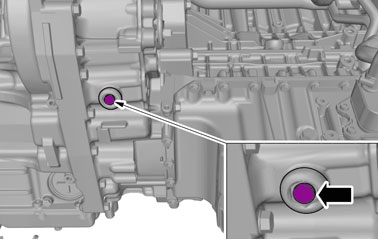

See information about lubricants, transmission. Refer to: LUBRICANT TRANSMISSION

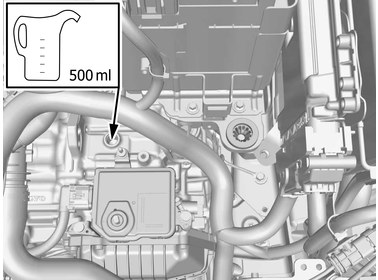

Fill up 300 ml.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Install the screw.

Torque: Oil filler plug, gearbox, 35Nm

Install the air filter housing. Refer to: AIR CLEANER HOUSING

Start the engine.

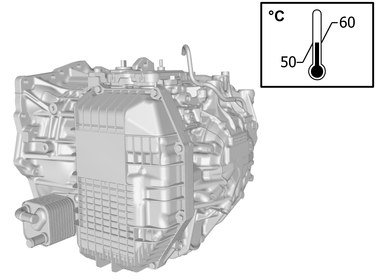

Read out the temperature of the gearbox oil: Diagnostics/Vehicle communication/Advanced/TCM/Parameter read out/Oil temperature

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is at the specified temperature.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

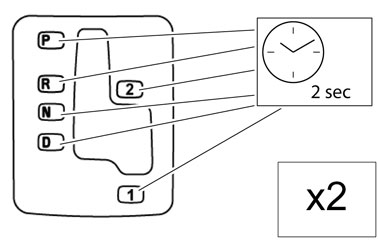

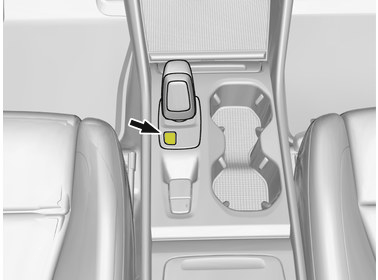

Set the vehicle to Drive mode, described in user mode. Refer to: USAGE MODE

Follow instructions for lifting points body frame. Refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

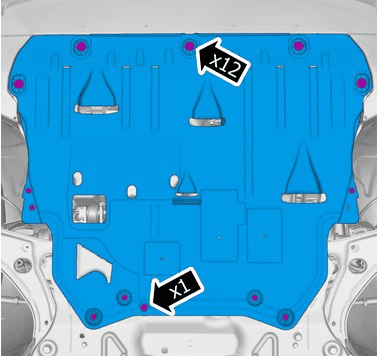

Remove the screws.

Remove the clip.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Hot fluid.

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

If transmission fluid escapes it is not an indication that the fluid level is correct.

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

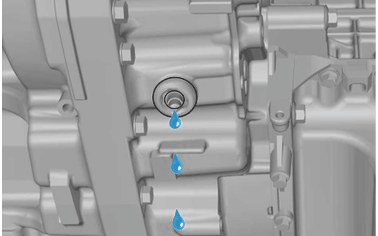

CAUTION:

The fluid must be allowed to escape until a continuous flow changes into single drops.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Install the screw.

Torque: Oil level plug, transmission, 8Nm

NOTE:

It may be necessary to repeat this step, and the step before, several times.

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Install the clip(s).
