Transfer Case Connecting Sleeve Seals: Notes

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES .

SPECIAL TOOLS

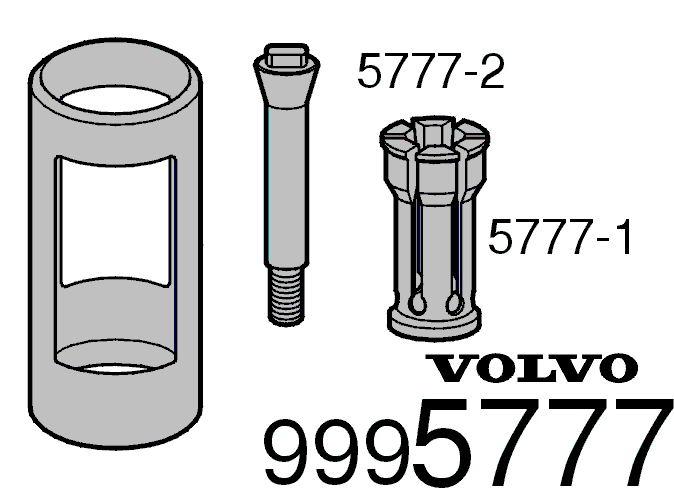

Courtesy of VOLVO CARS CORPORATION	999 5777 Extractor (AW50/AWD) S/V70-00, V70 00-)  Tool number:  999 5777 Tool description:  Extractor (AW50/AWD) S/V70-00, V70 00-) Tool boards:  43

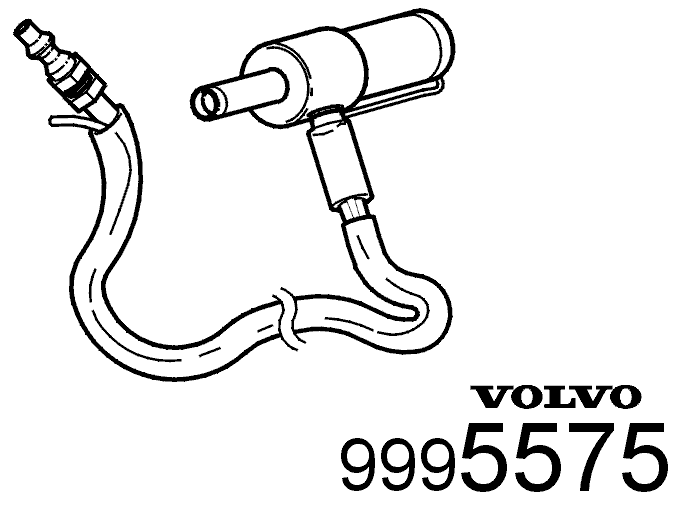

Courtesy of VOLVO CARS CORPORATION	999 5575 PULLER CYLINDER USED WITH HYDRAULIC PUMP -5576  Tool number:  999 5575 Tool description:  PULLER CYLINDER USED WITH HYDRAULIC PUMP -5576 Tool boards:  65
Courtesy of VOLVO CARS CORPORATION	951 2943 L-hook  Tool number:  951 2943 Tool description:  L-hook Tool boards:  80
Courtesy of VOLVO CARS CORPORATION	999 7772 Drift  Tool number:  999 7772 Tool description:  Drift Tool boards:  43

Materials
Designation	Part number
Oil
