Temperature Control Damper Motor, Right: Removal

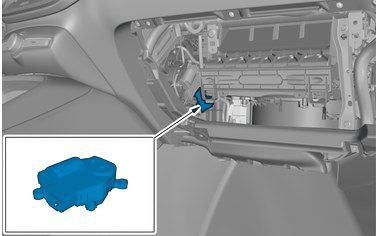

See information about part overview. Refer to: CLIMATE UNIT DAMPER MOTORS

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Remove glove compartment. Refer to: GLOVE COMPARTMENT

Courtesy of VOLVO CARS CORPORATION

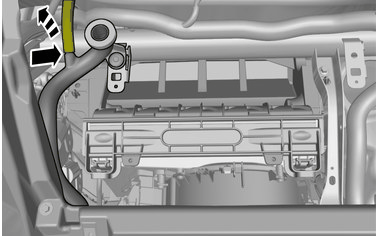

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

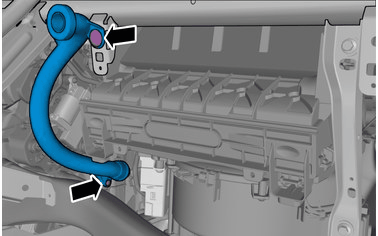

Remove the screw.

Loosen the clip.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

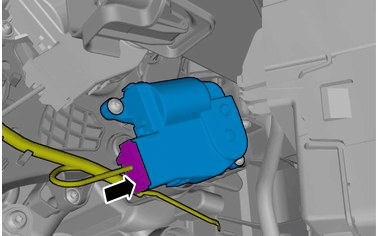

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

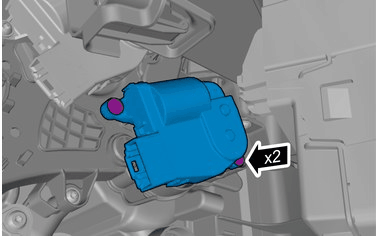

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

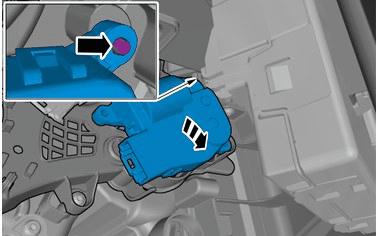

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
